- Brand: Selec
- Model: DXT23
- Type: Multifunction Digital Timer with Thumbwheel (Pushwheel) Setting
- Display: 3 Digits, 7 Segment LED Display with Relay Status Indication
- Operating Modes: ON Delay and Interval
- Time Ranges: 7 Selectable Ranges (9.99s, 99.9s, 999s, 99.9m, 999m, 99.9h, 999h)
- Counting Direction: Down Counting
- Control Inputs: Pulse Start, Remote Reset, and Front Panel Reset
- Relay Output: 2 x SPDT (1 C/O)
- Contact Rating: 10A @ 250V AC/24V DC (NO) and 5A @ 250V AC/24V DC (NC)
- Supply Voltage: 90 to 270 VAC/DC (50/60Hz)
- Accuracy: ±0.05% of Full Scale or 50msec (whichever is greater)
- Size: 72 x 72mm (Front Face) with Panel Mount Design
- Operating Temperature: 0 to 50°C
- Configuration: Side-mounted DIP switches for Mode and Range selection

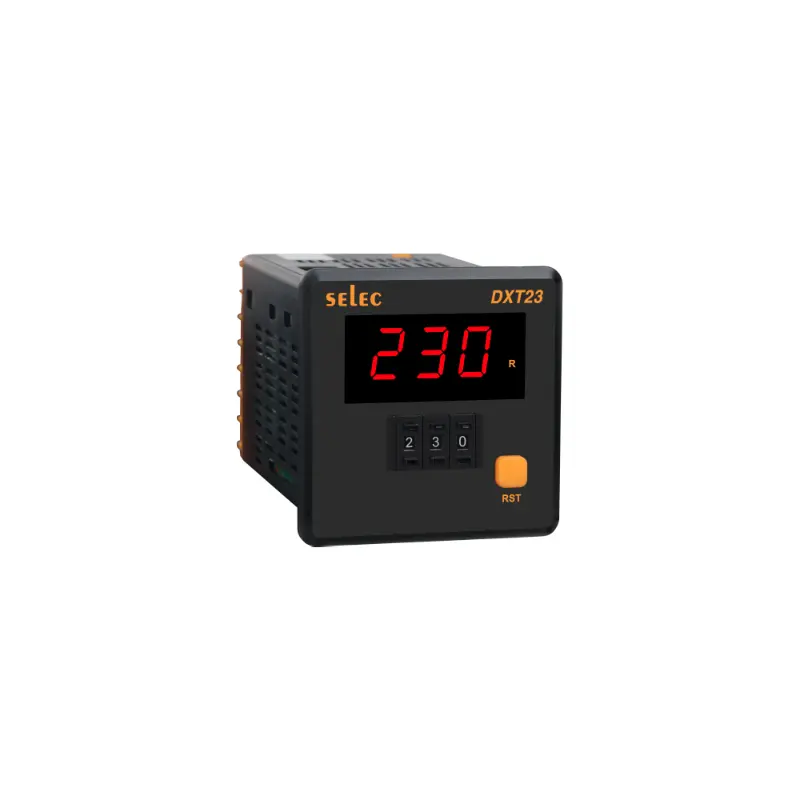

Selec DXT23 Digital Timer 3 Digit Single Red Display 90-270V AC/DC
