- Brand: Selec
- Model: PWCT-54/50-1600A/330mV
- Product Function: Current Transformer (Plug-and-Play)
- Rated Primary Current: 1600 A
- Secondary Output: 330 mV
- Accuracy Class: Class 1 (per IEC/EN 61869-2 & 60044-8)
- Window/Aperture Size: 54 x 50 mm
- Operating Frequency: 47 to 63 Hz
- System Voltage: Up to 0.72 kV R.M.S.
- Connection Type: 3-Phase RJ45 connector for easy installation
- Mounting Options: Panel mounting, DIN rail (35mm), or Busbar mounting
- Dimensions: Approximately 215 x 124 x 54 mm
- Operating Temperature: -25°C to +40°C
- Material: Self-extinguishing polycarbonate housing
- Protection Rating: Housing IP40; Terminals IP20

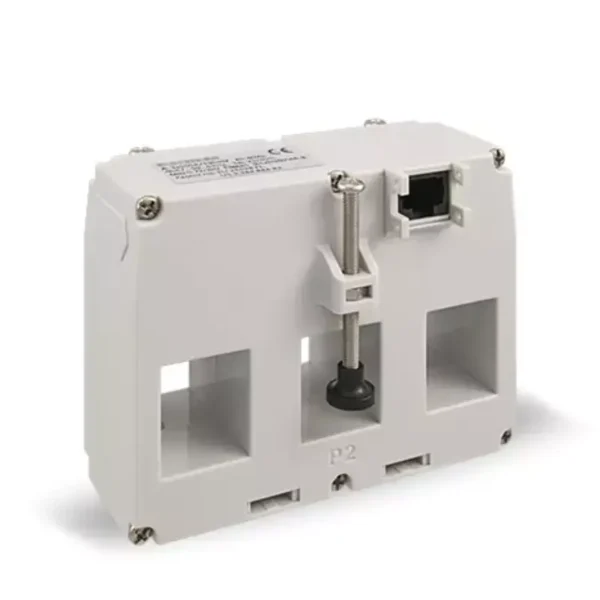

Selec PWCT-31/31-250A/330mV Plug-N-Wire Current Transformer
Original price was: ₹5,510.00.₹3,120.00Current price is: ₹3,120.00.
Selec PWCT-54/50-1250A/330mV Plug-N-Wire Current Transformer
Original price was: ₹9,207.00.₹5,215.00Current price is: ₹5,215.00.
-43%
Selec PWCT-54/50-1600A/330mV Plug-N-Wire Current Transformer
Original price was: ₹9,207.00.₹5,215.00Current price is: ₹5,215.00.
