- Brand: Selec
- Model: PPRD-4M-1-230V
- Primary Function: Digital Motor Protection with Dry/Under Current, Over Current, Locked Current, Over Voltage, Under Voltage, Phase Failure, and Overload Protection
- Supply Voltage: 180V to 300V AC (L-N)
- Frequency Range: 50-60Hz
- Rated Current (IR): 1A to 30A
- Current Measuring Range: 1A to 32A
- Voltage Measuring Range: 180V to 300V AC
- Output Specification: 1 Relay (1N/O SPST)
- Relay Rating: 30A @ 277VAC
- Display: 3 Digits, Seven Segment LED Display
- Protection Settings: Adjustable Trip Time (0-999sec), Recovery Time (1-999sec), and Hysteresis (0-10V)
- Overload Trip Class: NEMA Class 5, 10, 15, 20, 30
- Application: Motor/Pump protection including Start & Stop function by Push Button
- CTN Packing: Refer to standard industrial packaging
- Size/Dimensions: 70.0mm (Width) x 90.0mm (Height) x 66.50mm (Total Depth)
- Mounting: DIN Rail Mount
- Weight: Approximately 190gms
- Operating Temperature: 0 to 55°C
Selec PPRD-4M-3-415V Digital Pump Protection Relay 415V
Original price was: ₹2,862.00.₹1,622.00Current price is: ₹1,622.00.
Selec MPCT D15 80A Motor Protection Current Transformer 80A
Original price was: ₹1,221.00.₹692.00Current price is: ₹692.00.
-43%

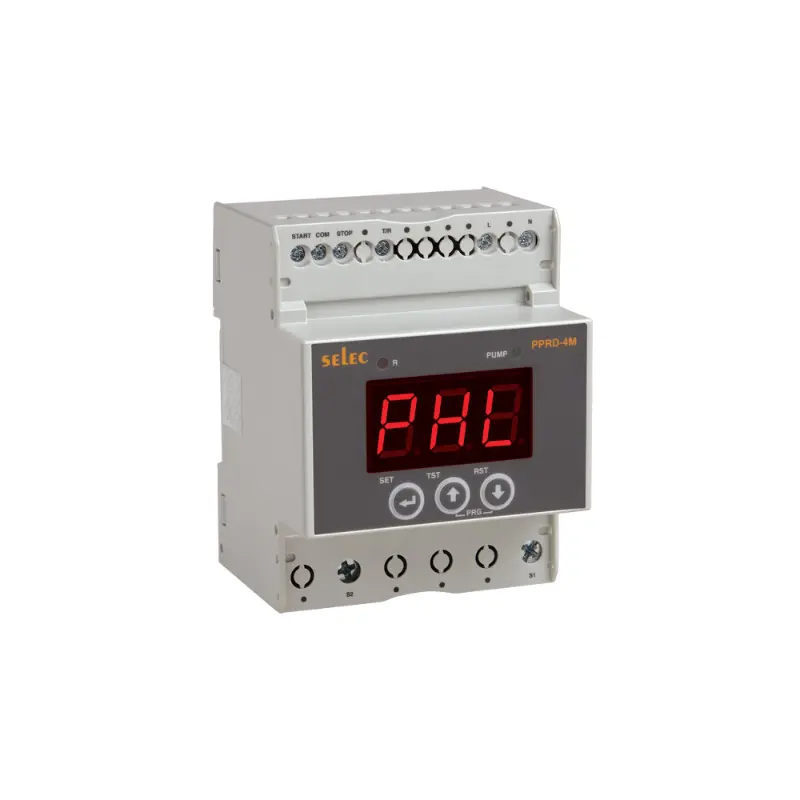

Selec PPRD-4M-1-230V Digital Pump Protection Relay
Original price was: ₹2,554.00.₹1,446.00Current price is: ₹1,446.00.
