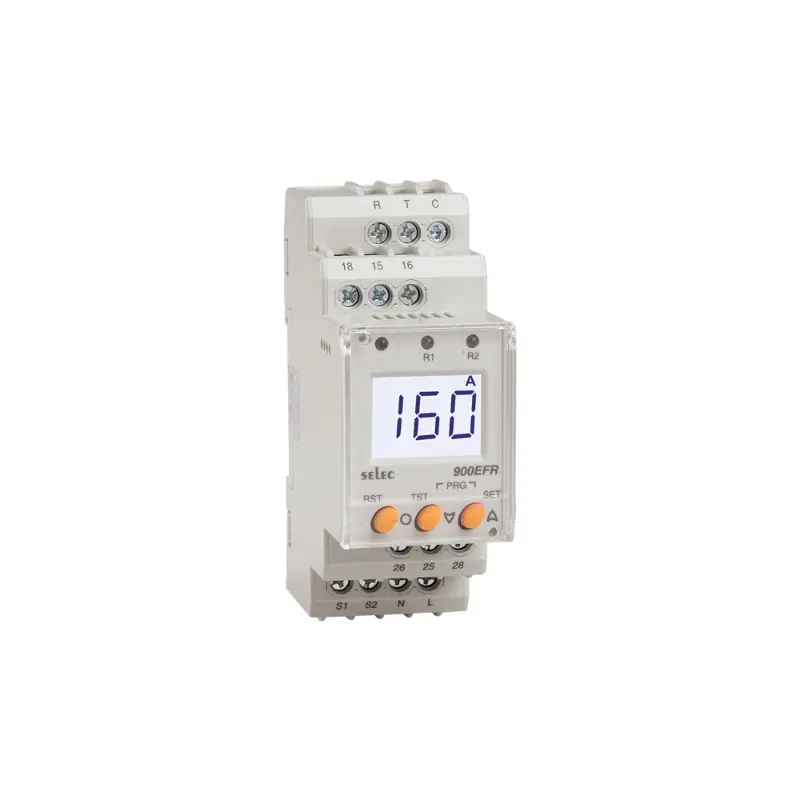

- Brand: Selec
- Model: 900EFR-BL-U-CE
- Function: Digital Earth Fault Relay with Backlight Display
- System Compatibility: Supports 1Ø-2W, 3Ø-3W, and 3Ø-4W configurations
- Supply Voltage: Universal 85V to 270V AC/DC
- Trip Settings: Adjustable from 10% to 80% of the selected MCCB frame rating
- Programmable CT Primary: Supports ratings of 160A, 250A, and 630A
- Relay Outputs: Two independent 1 C/O (SPDT) relays (Trip and Pre-alarm)
- Contact Rating: NO: 5A @ 250V AC; NC: 3A @ 250V AC
- Trip Time Delay: Programmable from 0 to 99.9 seconds
- Power ON Delay: Programmable from 0.5 to 99.9 seconds
- Recovery Time Delay: 0 to 99.9 seconds (applicable in Auto Reset mode)
- Response Time: Rapid protection with less than 100ms response
- Display Type: 3-digit LCD with Backlight for enhanced visibility
- Reset Modes: Selectable Auto, Manual, or Remote reset
- Measurement Type: True RMS monitoring for high accuracy (±5%)
- Mounting: Standard 35mm DIN Rail mount
- Certification: CE and RoHS compliant
Selec WLCA2M1-CE-RoHS Water Level Controller
Original price was: ₹2,440.00.₹1,382.00Current price is: ₹1,382.00.

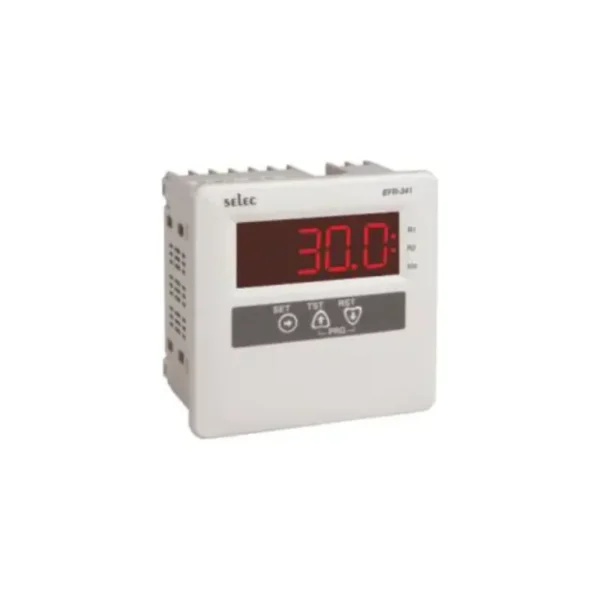

Selec EFR-341-2-CE Digital Panel Mount Earth Fault Relay 85-270V AC/DC
Original price was: ₹3,378.00.₹1,913.00Current price is: ₹1,913.00.
-43%
Selec 900EFR-BL-U-CE Digital Din Rail Mount Earth Fault Relay 85-270V AC/DC
Original price was: ₹4,568.00.₹2,588.00Current price is: ₹2,588.00.
