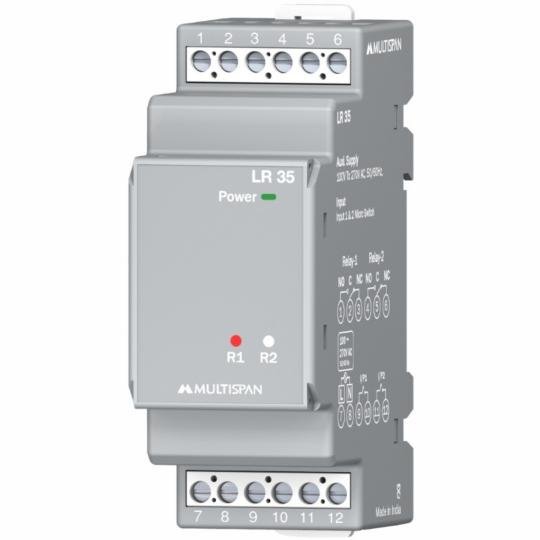

Multispan LR-35 Logic Relay 2 Micro Switch Input 90X35
Multispan LR-35 Logic Relay 2 Micro Switch Input 90X35 Original price was: ₹2,926.00.Current price is: ₹2,141.00.
Back to products

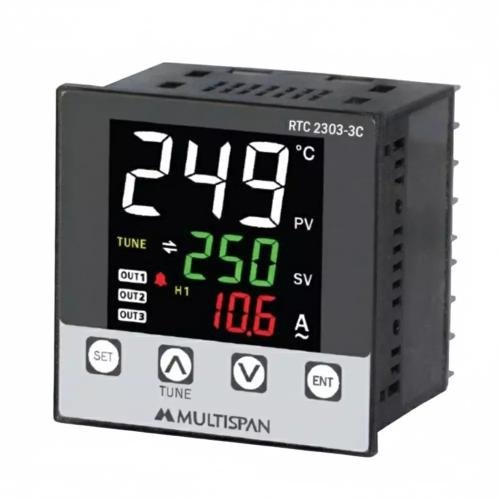

Multispan RTC-2303-1C Temperature Controller With Ampere 72X72
Multispan RTC-2303-1C Temperature Controller With Ampere 72X72 Original price was: ₹13,456.00.Current price is: ₹9,844.00.
-27%
Multispan WTR-35 Winding Temperature Relay 90X35 - Image 1
Click to enlarge

Multispan WTR-35 Winding Temperature Relay 90X35

SKU: Multispan WTR-35

Original price was: ₹2,240.00.Current price is: ₹1,640.00.

Are You an International Customer?

Click here to reach out to us directly via WhatsApp.

Add to compare
Add to wishlist

Payment Methods:

Description

  • Brand: Multispan
  • Model: WTR-35
  • Primary Function: Winding Temperature Protection for Motors
  • Input: PTC Thermistor (Single or up to 3 connected in series)
  • Auxiliary Supply: 50 to 550V AC, 50/60Hz
  • Output Contact: 1 Relay 2 CO (Two Changeover Contacts)
  • Contact Rating: 5 Amp at 230V AC (Resistive Load)
  • Trip Time Delay: Less than 1 second (Instantaneous)
  • Resetting Modes: Auto, Manual, or Remote Reset
  • Operating Modes: Configurable Fail-safe or Non-fail safe operation
  • LED Indications: Power ON, Sensor Healthy, Sensor Trip, Sensor Short, and Sensor Open
  • Sensor Fault Settings: Trip at 4.1K to 5.5K ohms; Short circuit at 0-39 ohms
  • Mounting: 35mm DIN Rail Mounting
  • Dimensions: $90 times 35 times 61.5$ mm
  • Enclosure Material: ABS / PC ABS
