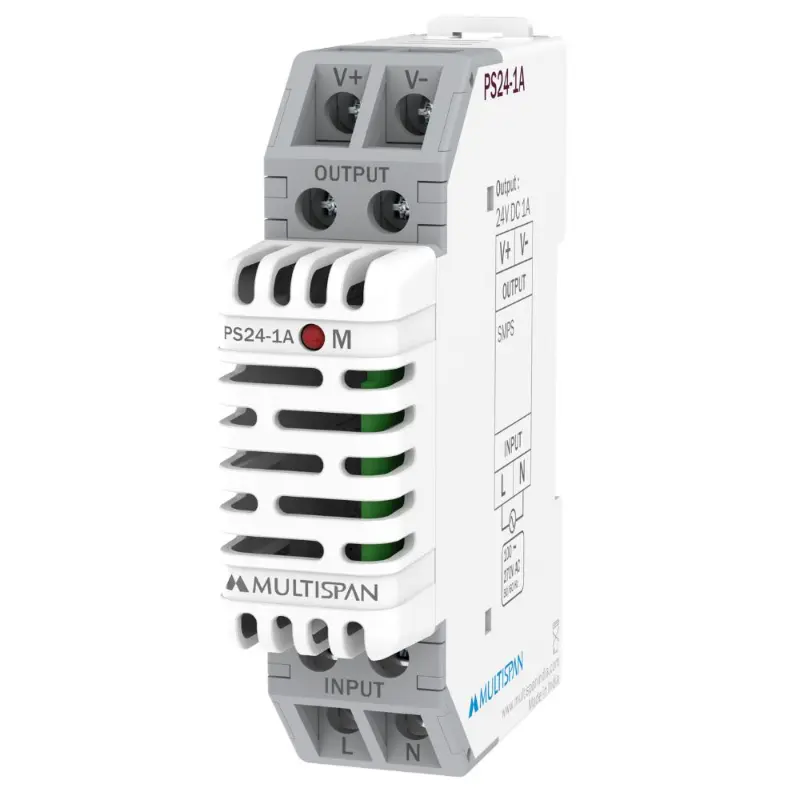

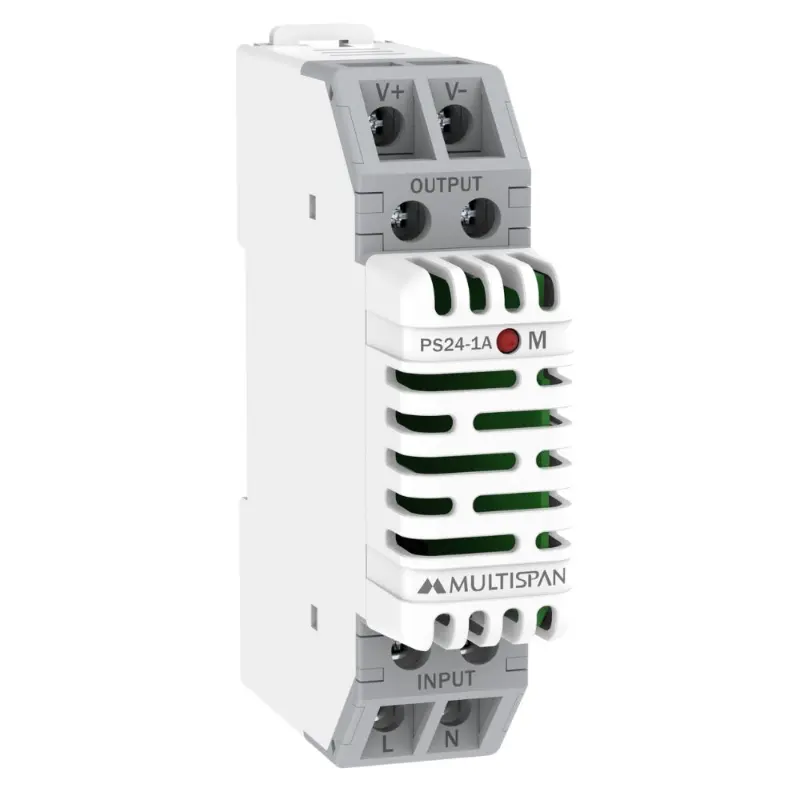

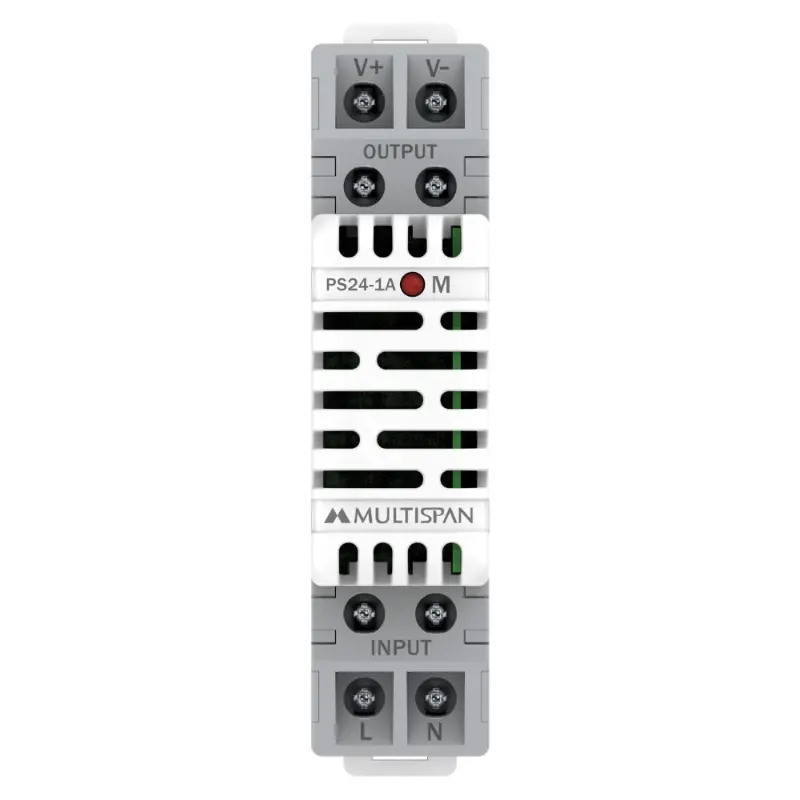

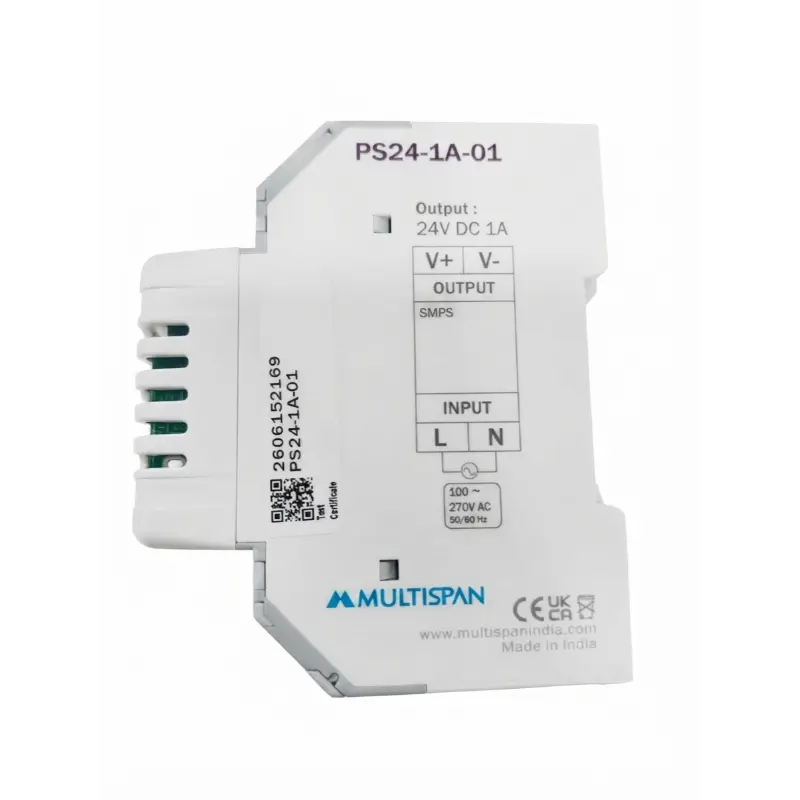

Multispan Switched Mode Power Supply PS24-1A

• Brand: Multispan
• Model No: PS24-1A

Input Specification:

• Supply Voltage : 100 to 270V AC±10%,(L-N)
• Frequency Range : 50/60 Hz
• AC Current (TYP.) : 0.49A@100V AC, 0.24A@270V AC
• Efficiency (TYP.) : >85%@230VAC
• Start UP time : <1 sec@230VAC & <3 sec@100VAC (Full Load)

Output Specification:

• Output Voltage : 24V DC
• Output Current : 1A at 24V
• Ripple & noise : <1% of Vout*
• Line & Load Regulation : ±1%
• Hold UP Time <60ms at 230VAC & >15ms at 100VAC (Full Load)
