- Brand: Metravi
- Model: RNT-33
- Function: 3-Phase Relay Test Kit
- Input Voltage: 415V ± 10%, 3-phase, 4-wire, 50Hz AC
- AC Current Output: 0 to 1A, 5A, 10A, 25A, 50A with 0-100% regulation per tap
- AC Voltage Output: 110V phase-to-phase, 63.5V phase-to-neutral; Adjustable R-phase 0-220V
- Fixed DC Voltage Source: Isolated 30V/110V/220V DC (100VA)
- Phase Angle Variation: 0 to 360° in current circuit
- Time Measurement: 0-9.999s and 0-99.99s selectable ranges
- Metering: C.T. operated ammeter (0-1A/scaled to range) and Voltmeter (0-300V)
- Duty Cycle: Continuous for 10A; Intermittent (5 mins ON / 10 mins OFF) for 25A & 50A

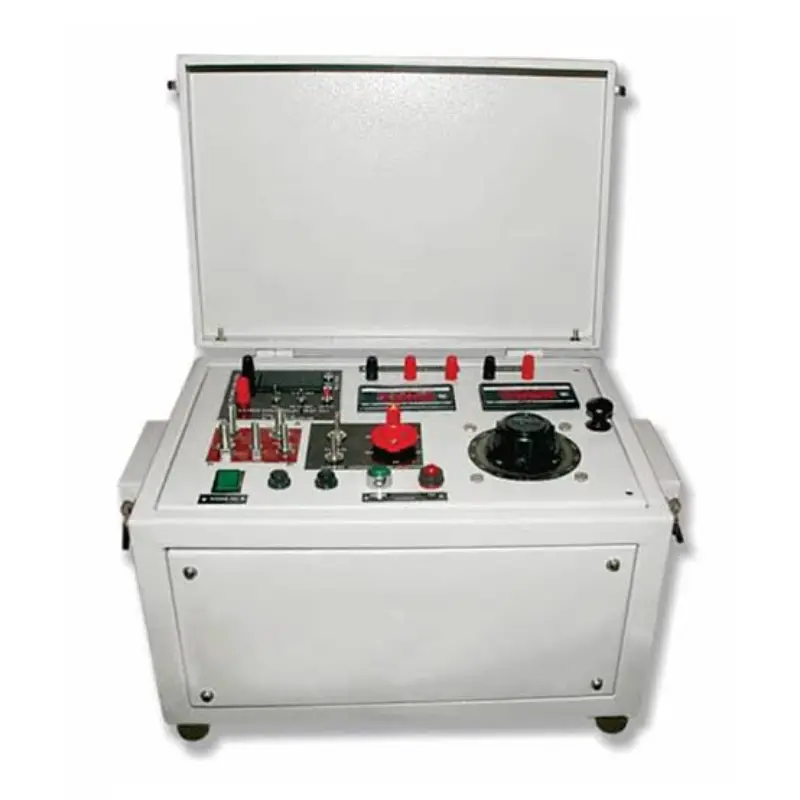

Metravi RNT-33 Relay Test Set for Distance Relays
₹379,960.00
