- Brand: Metravi
- Model: MC-22
- Function: Insulation and LCR Meter
- Insulation Resistance (IR) Range: 0 – 20 Meg ohms at 500 VDC
- Insulation Resistance Accuracy: ± 5% (max current 0.25mA)
- Resistance Range: 0 – 60 ohms in 6 ranges (0.2 ohms F.S.D. in range 6)
- Resistance Accuracy: ± 2%
- Inductance Range: 0 – 300mH in 6 ranges (1mH F.S.D. in range 6)
- Inductance Accuracy: ± 2%
- Power Supply: 1.5V x 6 AA size cells
- Dimensions: 210 x 125 x 65 mm
- Weight: 1000g (Approx.)
- Operating Temperature Range: 0 – 55°C

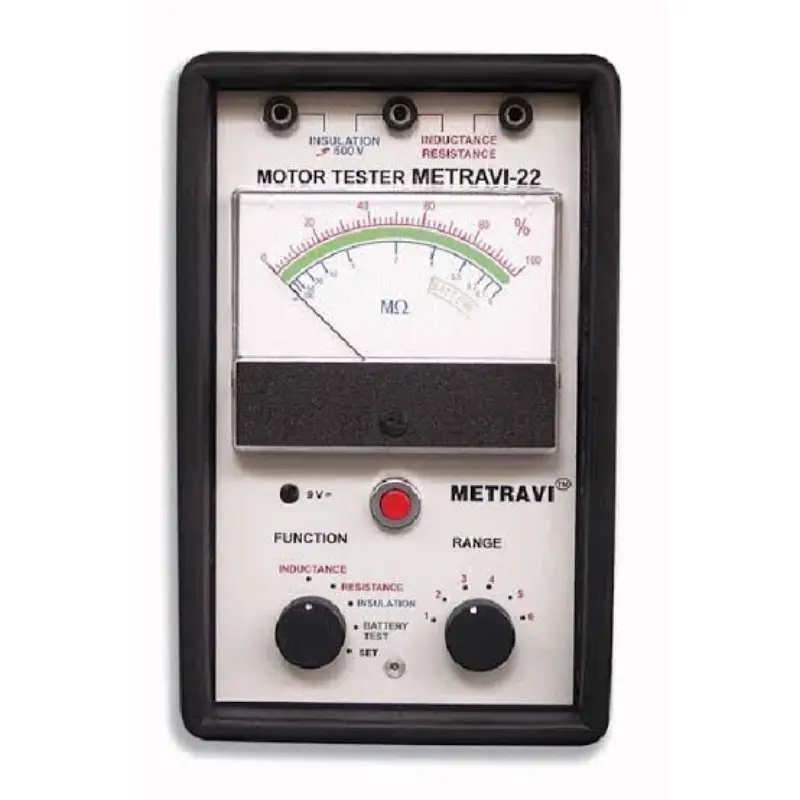

Metravi MC-22 Analogue Electric Motor Checker
₹40,710.00
