- Brand: Metravi
- Model: 275HP2
- Primary Function: High voltage line inspection and system identification
- Power Supply: Zn-Mn dry battery 6F22, 9V
- Voltage Level: 9 Gears
- Electricity Testing Level: 110V~500KV (optional)
- Indication: Red double-flash LED and “Bee-bee-bee” buzzing sound
- Self-Inspection: Included (Test gear with buzzer and light indicator)
- Low Battery Indication: LCD flashes at 7.2V±0.1V
- Protection Level: IP65
- Instrument Weight: 520g (Total with rod kit: 4.6kg)
- Instrument Size: 135mm x 115mm x 85mm
- Insulation Rod (Optional): Max φ38mm, 1000mm (contracted) to 4500mm (stretched)
- Insulation Test: Rod (AC 220 kV / RMS), Host (AC 3700V / RMS)
- Operating Temperature: -10°C~40°C, ≥ 80%RH

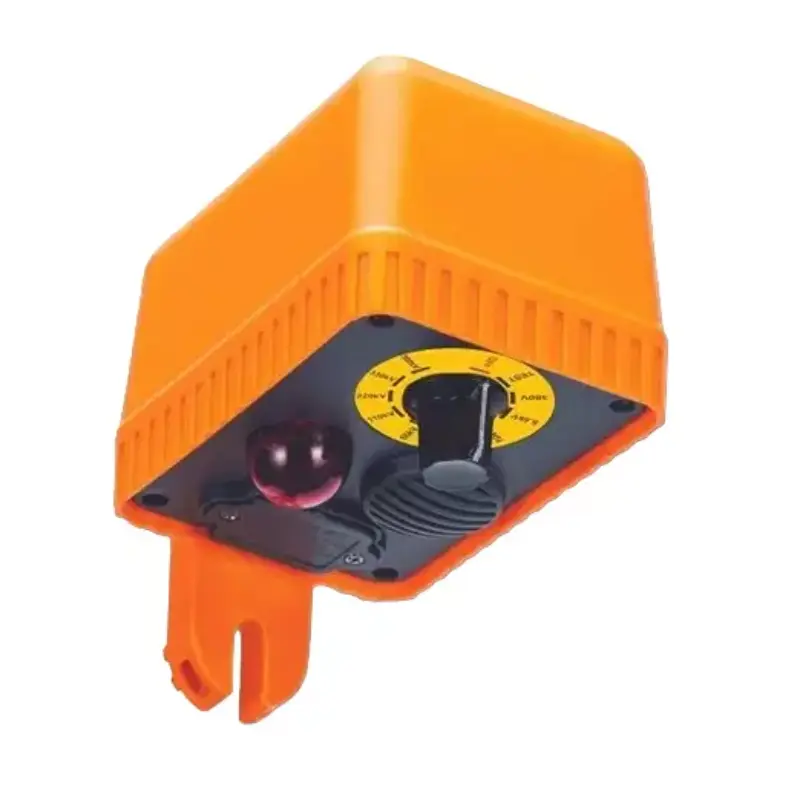

Metravi 275HP2 High Voltage Electroscope Kit for 500kV with 4.5m FRP Rod
₹28,769.00
