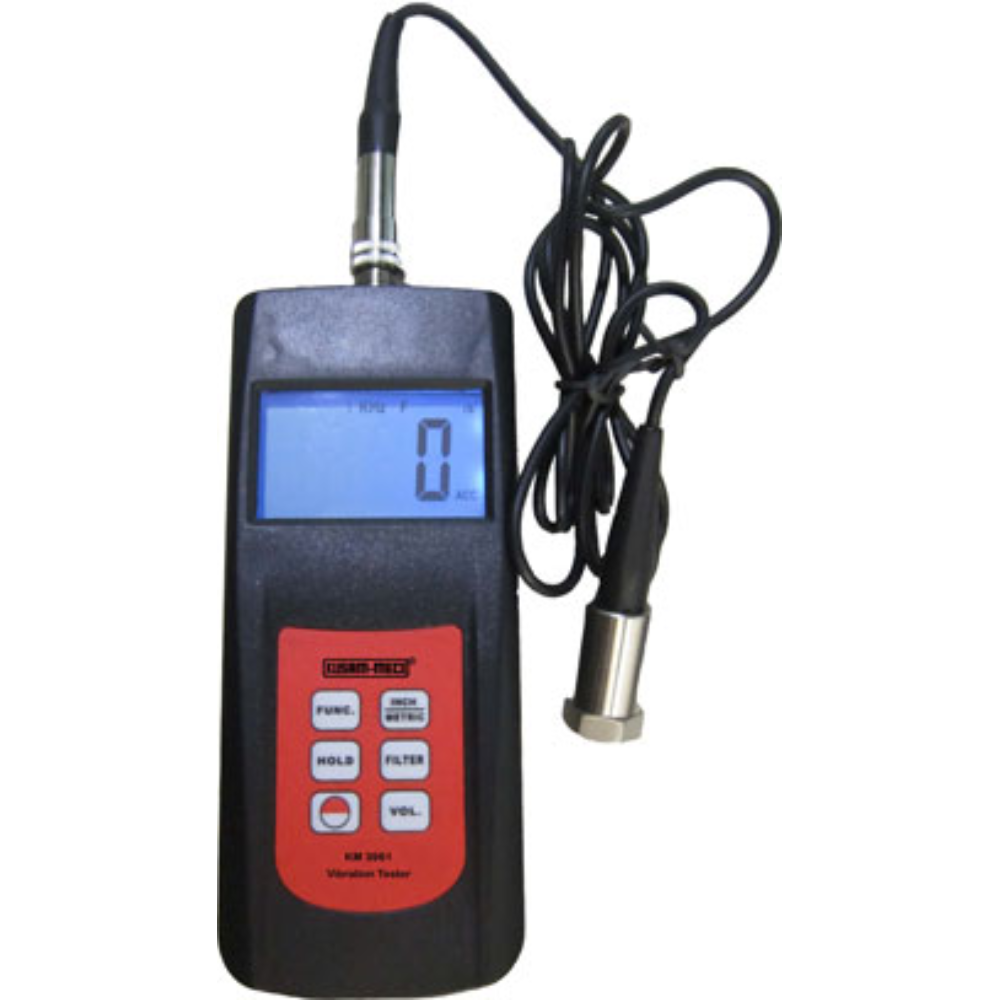

- Brand: Kusam Meco
- Model No: KM 3961
- Dimensions : 124 x 62 x 30 mm
- Display: 4 digits, 18 mm LCD
- Transducer: Piezoelectric accelerometer
- Parameters measured: Velocity, Acceleration, and Displacement RPM and Frequency
- Measuring range:? Velocity: 0.01- 400.0 mm/s true RMS 0.000-16.00 inch/s
- Acceleration : 0.1- 400.0m/s? equivalent peak 0.3 – 1312 ft/s?
- Displacement: 0.001 – 4.000mm; 0.04 – 160.0 mil, equivalent pk-pk
- RPM (r/min): 60 – 99,990 r / min Readings should be multiplied by 10 if the display shows ’10’.
- Frequency: 1 – 20 kHz
- The frequency range for measuring: Acceleration:10Hz ~ 1kHz In ‘1’ mode; 10Hz ~ 10kHz In ’10’ mode for bearing condition check
- Velocity : 10Hz to 1kHz
- Displacement : 10Hz to 1kHz
- Accuracy : ? 5% rdg + 2 digits
- PC interface: RS232C
- Output: AC output 2.0V peak full scale (load resistance: above 10k)
- Power supply : 4 x 1.5 AAA size (UM-4) batteries
- Operating Temperature & Humidity : 0-40?C; below 90% RH
- Weight: Approx.120g (without batteries)
Kusam Meco Digital Vibro Meter KM63
₹22,910.00

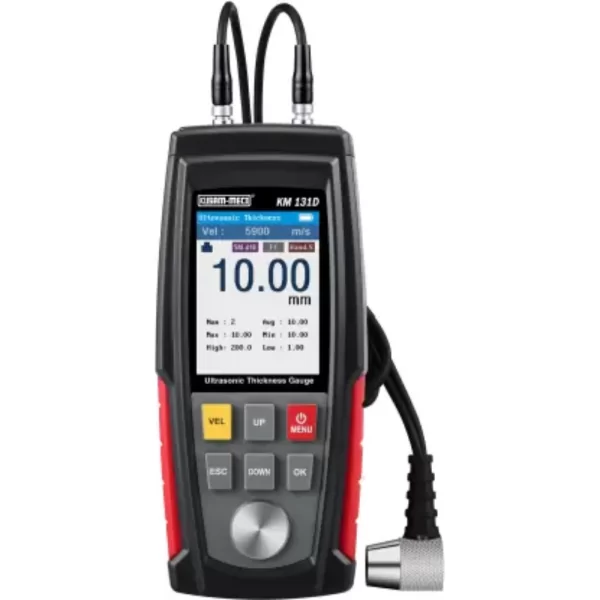

Kusam Meco Ultrasonic Thickness Guage KM131D
₹18,595.00
Kusam Meco Vibration Meter KM3961
₹48,546.00
Out of stock
Out of stock
