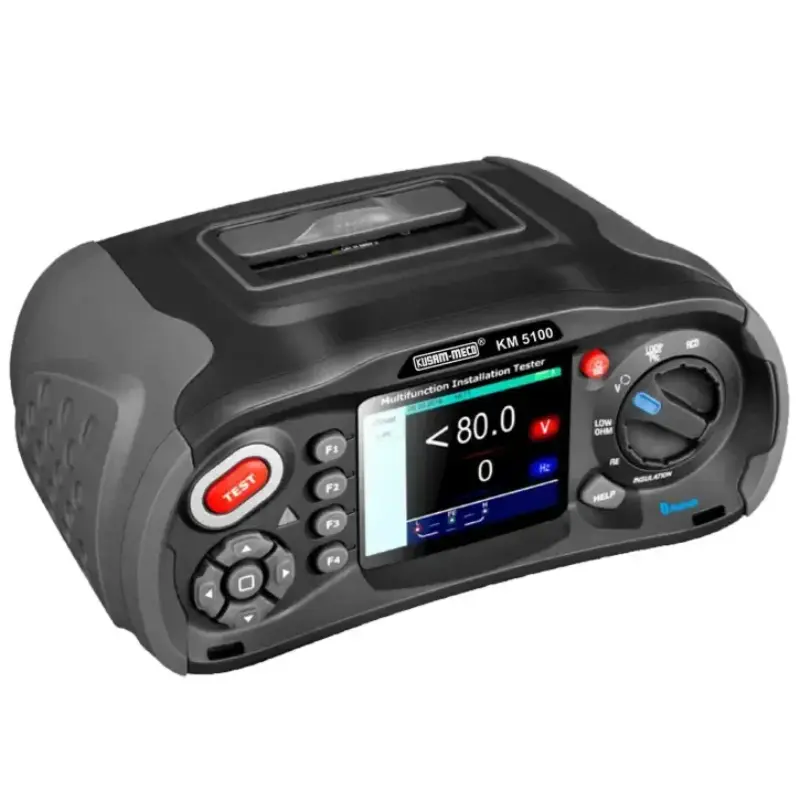

Kusam Meco Multifunction Installation Tester KM 5100, 3.5 Inch TFT Colour LCD with Insulation Resistance, Earth Resistance & RCD Testing

Name: Kusam Meco Multifunction Installation Tester KM 5100, 3.5 Inch TFT Colour LCD with Insulation Resistance, Earth Resistance &amp; RCD Testing
Brand: Kusam Meco
SKU: Kusam Meco KM 5100
Price: 124381.44 INR
Availability: InStock

SKU: Kusam Meco KM 5100

₹124,382.00

Are You an International Customer?

Click here to reach out to us directly via WhatsApp.

Add to compare

Add to wishlist

Payment Methods:

Description

Brand: Kusam Meco
Model: KM-5100
Product Type: Multifunction Tester for Electrical Installation Safety (DIN VDE 0100 & EN 61557)
Display: 3.5” TFT colour display
Insulation Resistance Nominal Voltages: 50V, 100V, 250V, 500V, and 1,000V DC
Continuity Resistance: Low R (200mA) and Continuity (low current)
RCD Testing Nominal Residual Currents: 6 / 10 / 30 / 100 / 300 / 500 / 650 / 1000 mA
RCD Test Current Shapes & Types: Types A, AC, B, B+, F (G, S types; Contact voltage, Trip-out time, Trip-out current)
EVSE Compatibility: RCD / FI for electric vehicles charging stations (6 mA DC)
Fault Loop Impedance & Prospective Fault Current: Zloop L-PE, Ipfc; Zloop L-PE RCD, Ipfc; non-trip subfunction Loop-Rs
Line Impedance & Prospective Short-Circuit Current: Voltage drop detection
Voltage Range: 0 – 500V (TRMS Voltage, Rotary field)
Frequency Range: 10 – 499 Hz
Earth Resistance: Re (3-wire and 4-wire) and Ro (Optional accessory required)
Network Support: TT, TN, IT, LV (2 x 55 V)
Memory & Connectivity: 1000 measurement readings, Excel-Export, PC software, FW update per USB, API enabled
Power Supply: Rechargeable batteries with “on-board” charging capability via power adapter
Standard Accessories: 3 pcs test leads stackable (1 m), Schuko-plug test cable, 3 pcs test probes, 3 pcs alligator clips, instruction manual, shoulder strap, carrying bag & strap, USB cable, power adapter, 6 pcs rechargeable batteries
