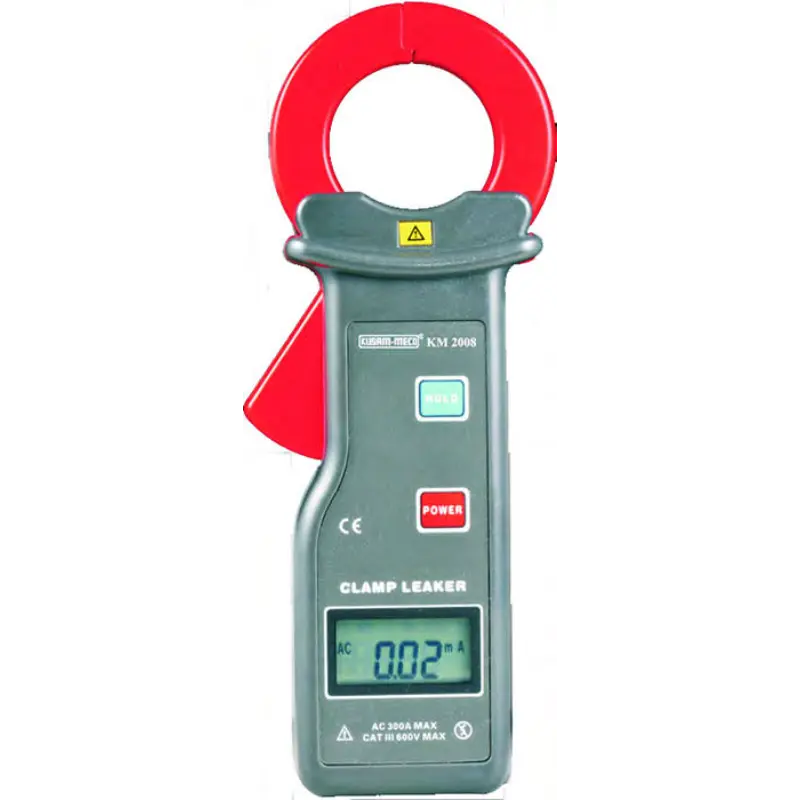

Kusam Meco Leakage Current Clampmeter KM 2008, 0.01mA to 300A AC 3000 Counts with Datalogging & PC Interface

Name: Kusam Meco Leakage Current Clampmeter KM 2008, 0.01mA to 300A AC 3000 Counts with Datalogging &amp; PC Interface
Brand: Kusam Meco
SKU: Kusam Meco KM 2008
Price: 21287.20 INR
Availability: InStock

SKU: Kusam Meco KM 2008

₹21,288.00

Are You an International Customer?

Click here to reach out to us directly via WhatsApp.

Add to compare

Add to wishlist

Payment Methods:

Description

Brand: Kusam Meco
Model: KM 2008
Function: Measurement of AC leakage current, AC current up to 300A & On-line measurement
Measurement Range: 0.00mA ~ 300.0A
Frequency Range: 50/60Hz (Automatically)
Resolution: 10 µA / 10 mA / 100 mA (range-dependent)
Accuracy: 0.00mA ~ 60.00A: ±(1.5% rdg + 5 dgts) | 60.00A ~ 199.9A: ±(2% rdg + 5 dgts) | 200.0A ~ 300.0A: ±(4% rdg + 5 dgts)
Jaw Opening Size: 40mm
Display: Four digit LCD display (32mm x 15mm) with Data Hold (DH) and Out of Range (OL) indicators
Data Storage: 99 groups (displays "FULL" when storage is reached)
PC Interface: RS232 Interface for data upload to PC and on-line monitoring
Supply Voltage / Power: Standard 9V battery with low battery indication (< 7.2V)
Power Consumption: About 5mW with 5 minutes Auto Power Off function
Operating Temperature and Humidity: 0°C ~ 40°C; below 80% R.H.
Storage Temperature and Humidity: -10°C ~ 60°C; below 70% R.H.
Insulation Strength: AC 2kV/rms (between alloy of the clamp & housing)
Safety Rating: IEC1010-1, IEC1010-2-032, pollution degree 2, CAT III (600V)
Dimensions: 175(W) x 70(H) x 38(T) mm
Weight: Approx. 120g (with battery)
Included Accessories: Carrying Case, Battery installed, User's Manual, RS232 PC Interface CD
