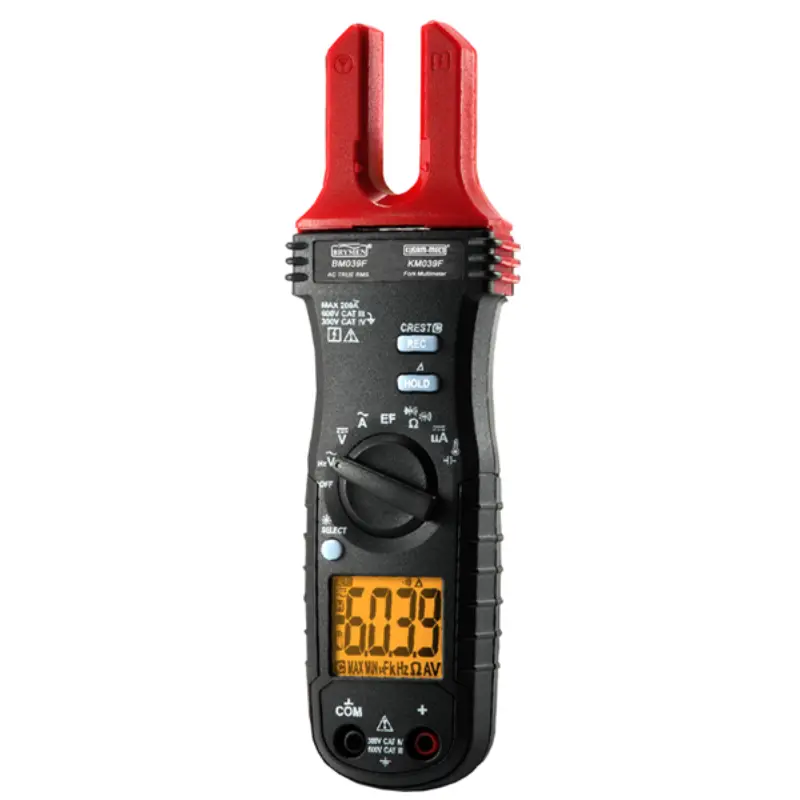

Kusam Meco Fork Type Clampmeter KM 039F, 200A AC 6000 Counts True RMS with LCD Display

Name: Kusam Meco Fork Type Clampmeter KM 039F, 200A AC 6000 Counts True RMS with LCD Display
Brand: Kusam Meco
SKU: Kusam Meco KM 039F
Price: 13304.50 INR
Availability: InStock

SKU: Kusam Meco KM 039F

₹13,305.00

Are You an International Customer?

Click here to reach out to us directly via WhatsApp.

Add to compare

Add to wishlist

Payment Methods:

Description

Brand: Kusam Meco
Model: KM 039F
Display: 3-5/6 digits 6000 counts LCD display with 5/sec nominal update rate
Sensing: True RMS sensing for accurate AC measurements
Basic Accuracy: 1.0%
Fork-Clamp Dimensions: 12.5mm maximum opening & conductor diameter; 12mm approximate probe width
Overload Protection: Fork-Clamp: 200A AC rms at <400Hz; Terminals: 66V DC / 920V AC rms (Voltage), 600V DC / VAC rms (Other functions)
Power Supply: 1.5V AAA x 2 batteries with 5mA typical power consumption
Low Battery Indication: Below approx. 2.85V for Capacitance & Hz; Below approx. 2.5V for other functions
Auto Power Off: Idle for 32 minutes
Operating Environment: 0 °C to 40 °C; Maximum 80% relative humidity up to 31 °C decreasing linearly to 50% at 40 °C
Storage Conditions: -20 °C to 60 °C, <80% R.H. (with battery removed)
Altitude & Pollution Degree: Operating below 2000m; Pollution degree 2
Temperature Coefficient: Nominal 0.1x (specified accuracy) / °C @ (0 °C ~ 18 °C or 28 °C ~ 40 °C)
E.M.C. Compliance: Meets EN61326-1:2013 standards
Dimensions & Weight: Approx. 193(L)mm x 57(W)mm x 32(H)mm; Approx. 158gm (including battery)
