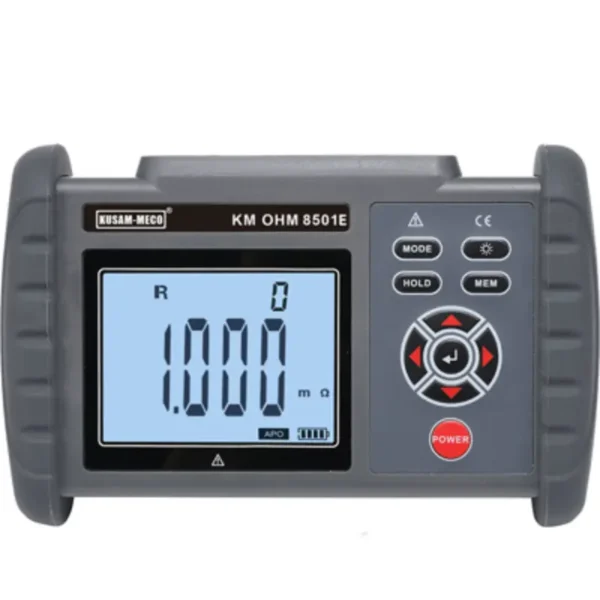

Kusam Meco Digital DC Micro Ohm Meter KM OHM 8501, 1A Output Current

Name: Kusam Meco Digital DC Micro Ohm Meter KM OHM 8501, 1A Output Current
Brand: Kusam Meco
SKU: Kusam Meco KM OHM 8501
Price: 34559.84 INR
Availability: InStock

SKU: Kusam Meco KM OHM 8501

₹34,560.00

Are You an International Customer?

Click here to reach out to us directly via WhatsApp.

Add to compare

Add to wishlist

Payment Methods:

Description

Brand: Kusam Meco
Model: KM OHM 8501
Function: Digital Micro Ohm Meter / Loop Resistance Tester for measuring wire resistance of cables, contact resistance of switches, connectors, relays, coils, motors, transformer windings, and ground grids
Detection Method: Four-wire method test
Test Current: ≥1A (Measure: 2A Max with backlight off)
Open Circuit Voltage: ≤4.2V
Overload Protection: Yes; AC 220V/0.0001 second between C1-C2 P1-P2 ports (requires meter restart after activation)
Power Supply: DC 3.7V 2000mAh battery
Measuring Power: ≤8W
Display Mode: LCD display, 72mm × 55mm size with controllable gray and white screen backlight
Data Storage & Review: 500 groups with “MEM” storage indication, “FULL” symbol display, and “MR” data review function
Overflow Display: “OL” symbol display for over-range overflow
Automatic Shut-down: “APO” indication, automatic shutdown after 15 minutes of inactivity
Power Consumption: Standby: ~100mA (backlight off); Backlight turned on: ~105mA
Insulation Resistance: More than 10MΩ (Between circuit and case 500V)
Pressure Resistance: AC 3700V/rms (Between circuit and case)
Working Environment: -10°C to 50°C; below 80%rh
Storage Environment: -20°C to 60°C; below 70%rh
Dimensions & Weight: Instrument: 187mm × 119mm × 50mm; Weight: 480g (including battery)
Test Line & Communication: About 60cm test line (red, black 1pcs, 250g); Includes micro USB interface and 1pcs micro USB communication line
Safety Regulations & Standards: IEC61010-1, CAT III 600V, pollution level 2, JJG724-1991, JJG166-1993, DL/T967-2005, IEC61010-4-3
