- Brand: GIC
- Model: PIB110
- Technical Function: High-performance digital process indicator with universal sensor support.
- Supply Voltage: 85 to 270V AC/DC.
- Sensor Inputs: Universal support for Analog (0-10 VDC / 4-20 mA), Thermocouples (J, K, T, R, S), and RTD (Pt-100, 2 & 3 wire).
- Measurement Range (Temperature): Pt100: -200°C to 850°C; J: -200°C to 750°C; K: -200°C to 1350°C; T: -200°C to 400°C; R & S: 0°C to 1750°C.
- Measurement Range (Analog): Voltage: 0 to 10VDC; Current: 0 to 20mA / 4 to 20mA; mV (Linear): -5 to 56mV.
- Display: 4 Digit, 7-Segment Red LED display.
- Resolution: Selectable decimal point (1/0.1/0.01/0.001) for analog and 1°C/0.1°C for temperature (R&S at 1°C).
- Auxiliary Supply: Includes 24 VDC sensor supply.
- Dimensions: Flush mounting 96 x 48 mm with a short depth of 70.6 mm.
- Degree of Protection: IP 20 for terminals/enclosure and IP 55 for front panel.
- Compliance: CE certified with Flame Retardant UL94V0 enclosure.

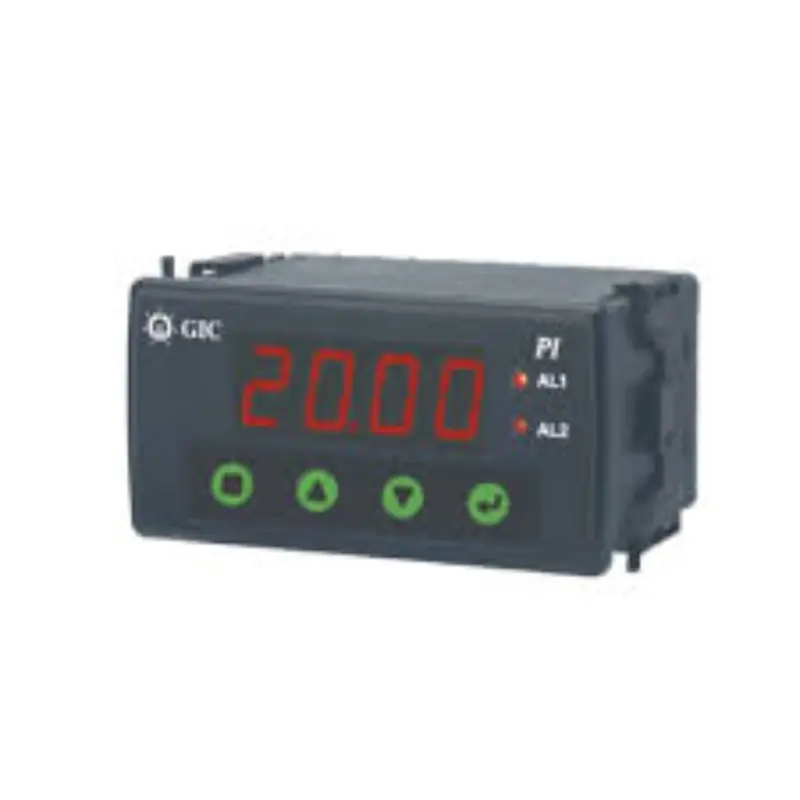

GIC PIB110 Process Indicator 85-270 VAC/DC
₹2,875.00
