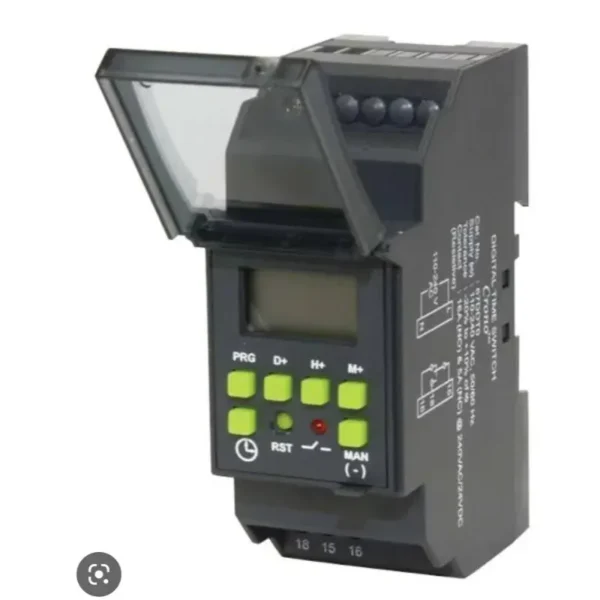

GIC 67DDT9 Digital Time Switch Pulse 110-240 VAC 1 C/O
GIC 67DDT9 Digital Time Switch Pulse 110-240 VAC 1 C/O Original price was: ₹3,230.00.Current price is: ₹2,516.00.
Back to products
GIC 2AADT5 Asymmetrical ON/OFF Timer Micon 225 24-240 VAC/DC
GIC 2AADT5 Asymmetrical ON/OFF Timer Micon 225 24-240 VAC/DC Original price was: ₹2,200.00.Current price is: ₹1,714.00.
-22%
GIC 69HDT9 Digital Time Switch Pulse 12 VDC 1 C/O - Image 1
Click to enlarge

GIC 69HDT9 Digital Time Switch Pulse 12 VDC 1 C/O

SKU: GIC 69HDT9

Original price was: ₹3,831.00.Current price is: ₹2,984.00.

Are You an International Customer?

Click here to reach out to us directly via WhatsApp.

Add to compare
Add to wishlist

Payment Methods:

Description

  • Brand: GIC
  • Model: 69HDT9
  • Type: Digital Pulse Timer (Pulse Series)
  • Supply Voltage: 12 VDC
  • Supply Variation: -20% to +10%
  • Power Consumption: 1 VA Maximum
  • Output: 1 C/O (SPDT) Relay
  • Contact Rating: 16 A (NO) & 5 A (NC) @ 240 VAC/24 VDC (Resistive)
  • Programming: 16 ON Programs with adjustable pulse duration
  • Pulse Duration: 01 to 59 seconds
  • Clock Display: 3 Line Text LCD with 12h/24h mode selection
  • Battery Backup: Approximately 6 years running reserve at 20 °C
  • Clock Accuracy: +/- 2 seconds/day maximum over operating temperature
  • Operating Temperature: -10° C to +55° C
  • Mounting: Base / DIN Rail 35mm
  • Dimensions: 36mm Width x 90mm Height x 65mm Depth
  • Degree of Protection: IP-20 for Terminals, IP-40 for Enclosure
  • Special Features: DST (Daylight Saving Time) feature, Keypad Lock, and Manual Override
