- Brand: GIC
- Model: 150DT4
- Function: On-Delay Electronic Timer
- Supply Voltage: 12VDC
- Supply Variation: -20% to +10% of Ur
- Power Consumption: 15 VA Max
- Timing Ranges: 6 selectable ranges (3s, 30s, 3m, 30m, 3hr, 30hr)
- Reset Time: 100 msec. (Max.)
- Setting Accuracy: +/-5% of full scale
- Repeat Accuracy: +/-1%
- Relay Output: 1 C/O (SPDT)
- Contact Rating: 5A (Resistive) @ 240 VAC / 28 VDC
- Status Indication: Green LED for Power ON; Red LED for Relay ON
- Mounting: Base or DIN-Rail (35mm)
- Size: 17.5mm (W) x 65.0mm (H) x 90.0mm (D)
- Operating Temperature: -10°C to +55°C
GIC 23LDT0 Motor Restart Timer 110 VAC 1 C/O
Original price was: ₹2,300.00.₹1,792.00Current price is: ₹1,792.00.

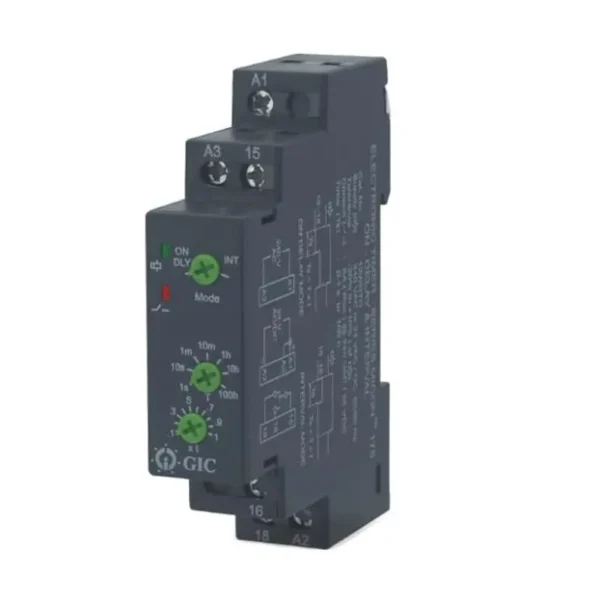

GIC 15BDT4 One Shot Timers, Micon 175, 12 VDC
Original price was: ₹1,451.00.₹1,130.00Current price is: ₹1,130.00.
-22%
GIC 15ODT4 Analogue Timer Micon 175 On Delay
Original price was: ₹1,151.00.₹896.00Current price is: ₹896.00.
