- Brand: GIC
- Model: 151F42B
- Primary Function: Single Acting Advanced PID Temperature Controller
- Supply Voltage: 110-240 VAC/DC (Supply Variation: -20% to +20%)
- Universal Inputs: Thermocouple (J, K, E, S, B, R), RTD (PT100-3 wire), and Analog Signal DC (0-5 V, 1-5 V, 0-10 V/4-20 mA, 0-50/60 mV, 12-60 mV)
- Output 1: 1 Relay (SPST 5A @ 240 VAC / 24 VDC)
- Output 2: 1 Relay (SPST 5A @ 240 VAC / 24 VDC)
- Output 3: SSR Driving Output (12 VDC, 24 mA) with Short Circuit Protection
- Measurement Range: Sensor J (0 to 700°C), Sensor K (0 to 1300°C), PT100 (-200 to 700°C)
- Control Action: ON/OFF (Symmetric/Asymmetric) and PID (Single Acting)
- Display: Dual row 7-segment digital display (4-digit PV, 4-digit SV) with LED indications
- Dimensions: 96 x 96 x 69.1 mm (Flush Mounting)
- Protection: IP 20 (Terminals & Enclosure), IP 40 (Front Panel)
- Special Features: Auto-tuning PID, Soft-Start provision, and configurable alarms (Absolute, Deviation, Sensor break, Loop break)

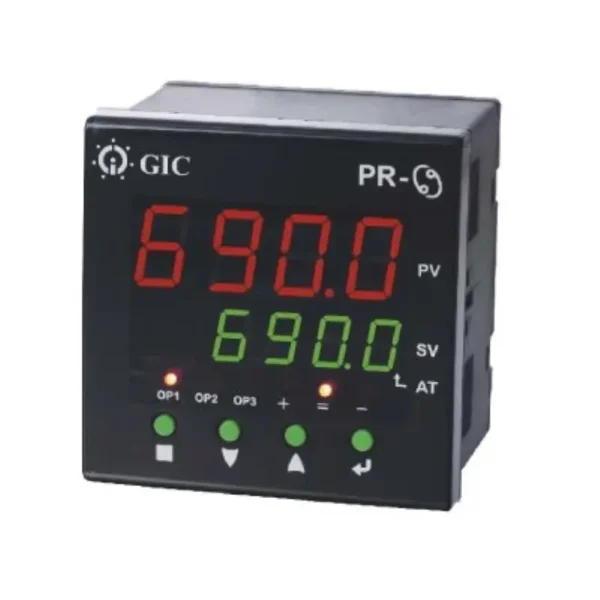

GIC 151F42B PID Temperature Controller 4 digit dual display
₹4,575.00
