- Brand: TRINITY
- Model No: NEWTON+8
- Operating Voltage: 80 VAC – 480 VAC,50-60 Hz
- Accuracy: 0.5% of Reading (Voltage),0.25% of Reading (Current),1.0% of Reading (Capacitor current)
- Dimensions: 96 X 96 mm (Benzel),92 X 92 mm (Panel cutout)
- Display: LED (Stage indication)
- Display Size: 16 x 2
- Power Factor Control Range: 0.05 to 1.00 Lag/ Lead
- Weight: Approx 0.376 Kg
- Minimum Operating Current: 1% of CT primary in VAR mode,2.5% in PF mode
- Secondary Input Current: 5A or 1A (To be specified at the time of Ordering)
- Operating Temperature: 10 deg C to 50 deg C
- Direct Input Voltage: Up to 300 V L-N
- Range of Reading Current: 0-5000 A
- Input Supply: One Phase and Neutral of 3P4W system
- Number Of Stages: 4/6/8 Relays
- Burden: 0.5 VA (Voltage), Less than 1.0 VA (Current)
- Switching Voltage: Max 250 VAC
- Switching Power Max: 1000 W
- Depth of Installation: 55 mm

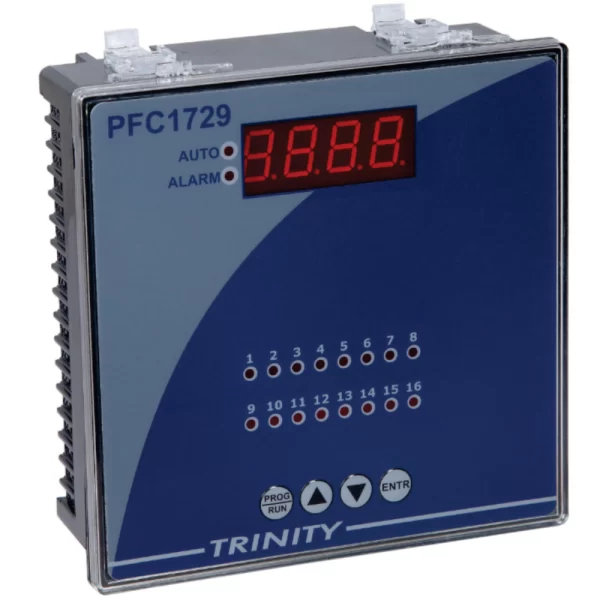

TRINITY POWER FACTOR CORRECTION RELAY PFC172916
Original price was: ₹19,623.00.₹16,353.00Current price is: ₹16,353.00.

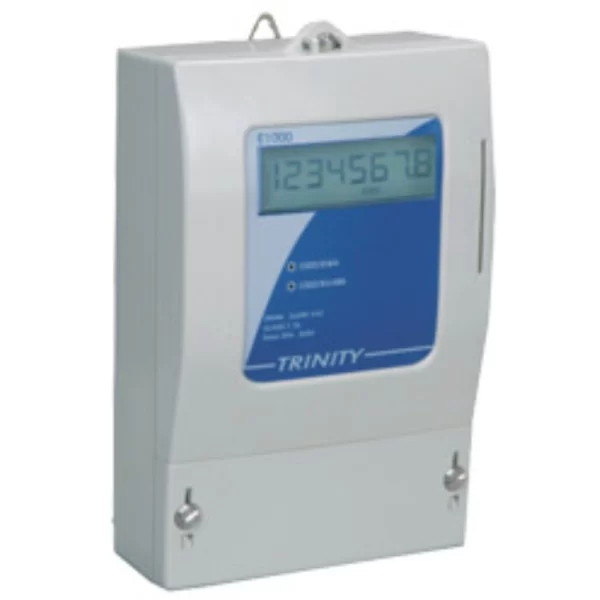

TRINITY Revenue Grade Dual Source Energy Meter E1000
Original price was: ₹12,192.00.₹10,160.00Current price is: ₹10,160.00.
-20%

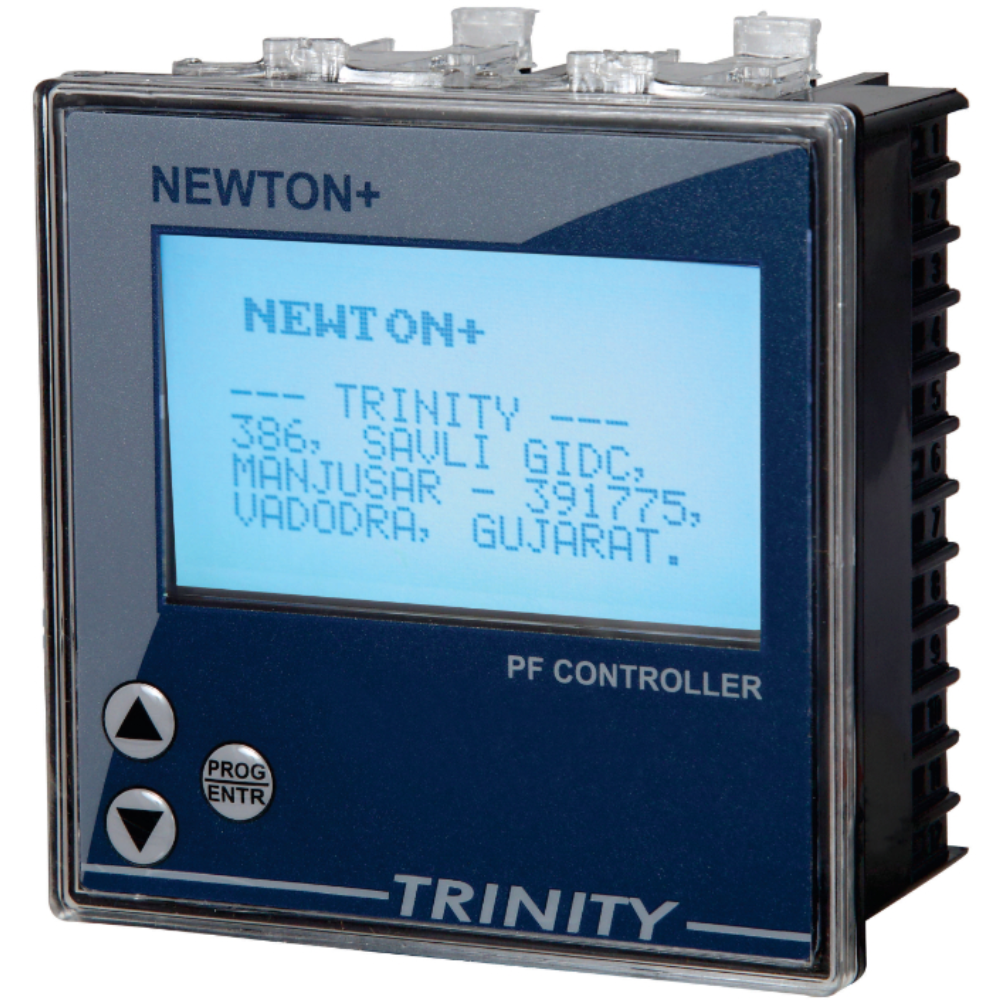

TRINITY Newton Plus Power Factor Correction Relays NEWTON+8
Original price was: ₹11,330.00.₹9,065.00Current price is: ₹9,065.00.
100 in stock
100 in stock
