-46%

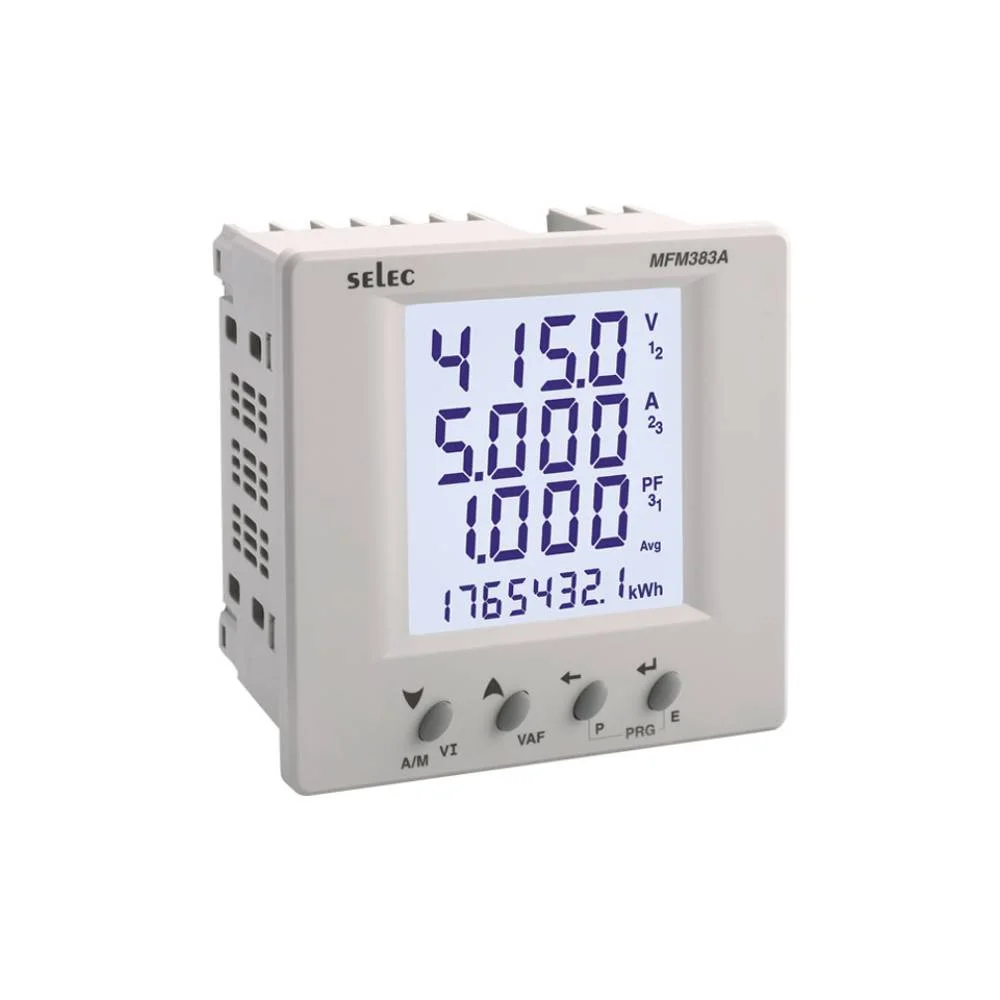

- Brand : Selec
- Model Number : MFM383A
- Display Type : LCD with Backlight
- Display Configuration : 3 Rows of 4 Digits, 1 Row of 7 ½ Digits
- Electrical Connection : 3Ø – 3W, 3Ø – 4W, 2Ø – 3W, 1Ø – 2W
- Type of Output : Pulse Output
- Features : Password Protection, Energy (Active / Reactive / Apparent)
- CT Primary : 1 / 5A to 10kA (Programmable for Any Value)
- CT Secondary : 1 / 5A (Programmable)
- PT Primary : 100V to 10kV (Programmable for Any Value)
- PT Secondary : 100V to 500V AC (L ? L) (Programmable for Any Value)
- Rated Input Current : Nominal 5A AC (Min – 11mA Max – 6A)
- Supply Voltage : 85 to 270V AC, 50/60Hz (±5%)
- Size : 96 x 96mm
- Mounting Type : Panel Mount
- Certification : CE RoHS
