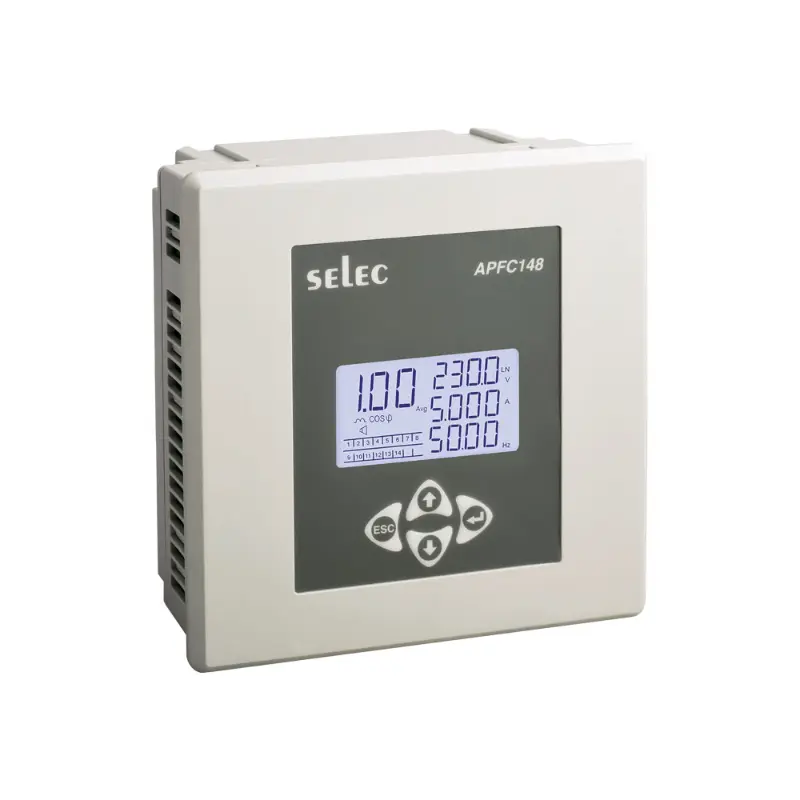

Selec APFC148-312-90/550V-CE Power factor controller with 3CT, 12 Stage, LCD Display, 90 to 550V AC, 144 x 144 mm size

Name: Selec APFC148-312-90/550V-CE Power factor controller with 3CT, 12 Stage, LCD Display, 90 to 550V AC, 144 x 144 mm size
Brand: Selec
SKU: APFC148-312-90/550V-CE
Availability: InStock

SKU: APFC148-312-90/550V-CE

Original price was: ₹13,094.00.Current price is: ₹7,375.00.

Are You an International Customer?

Click here to reach out to us directly via WhatsApp.

Add to compare

Add to wishlist

Payment Methods:

Description

Brand : Selec
Model Number : APFC148-312-90/550V-CE
Display Type : LCD with Dual Colour Backlight
Display Configuration : 3 Lines of 4 Digits to Show Electrical Parameters
Input Type : 3Ø-4 Wire, 3Ø-3 Wire, 2Ø-2 Wire, 1Ø-2 Wire
Frequency : 45-65 Hz
CT Primary : 1/5A to 9999A (Programmable for any Value)
CT Secondary : 1 or 5 A (Programmable)
PT Primary : 100V to 500kV AC (Programmable for any Value)
PT Secondary : 100 to 500V AC (Programmable for any Value)
Accuracy : Power Factor:±0.01, Voltage (L-N/L-L), Current: ±0.5% of full scale, Frequency – For L-N>20V, For L-L>35V: ±0.1% of full scale, Power (kW,kVA,kVAr), Energy (kWh,kVAh,kVArh): Class 1, Temperature : ±3° of full scale
Max Number of Steps : 12/14* (FAN & ALARM Output Can be Used as 13th and 14th Step)
Communication Protocol : Modbus RTU (RS485 Interface)
Supply Voltage : 90 to 550V AC
Bezel Size : 144 x 144mm
Mounting Type : Panel Mount
