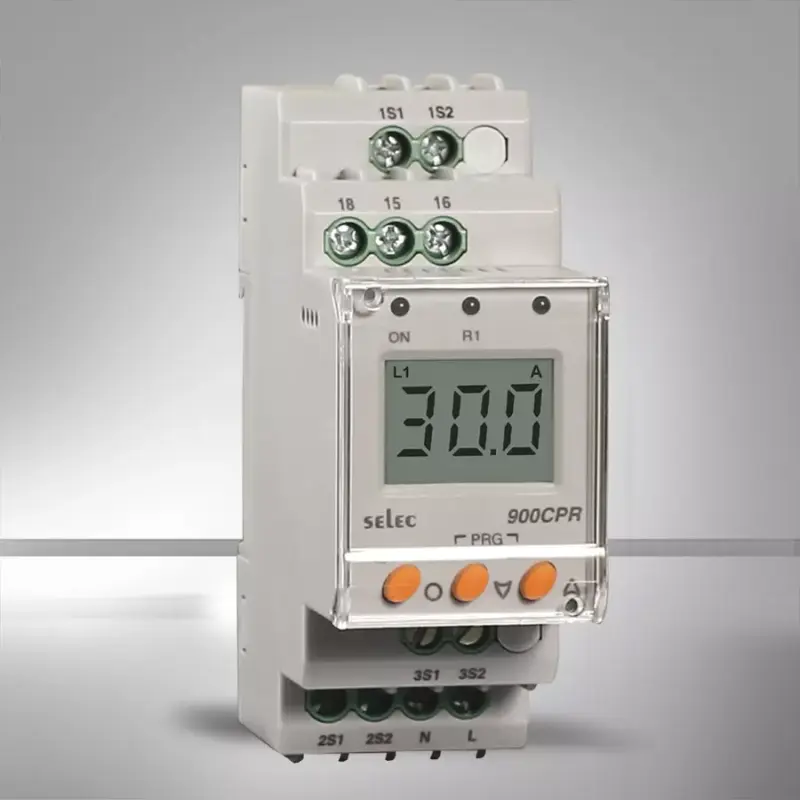

- Brand : Selec
- Model Number: 900CPR-1-230V
- Measuring Parameter: Under Current, Over Current, Current Asymmetry Monitoring
- Electrical Connection: 1Ø-2W, 3Ø-3W, 3Ø-4W
- Display: 3 Digits Liquid Crystal Display with Backlight
- CT Primary: 1A / 5A – 999A,
- CT Secondary: 1A / 5A (selectable)
- Power ON Delay: 0.5–99.9sec,
- Trip time delay: 0–99.9sec,
- Recovery Time Delay: 0–99.9sec (In Auto Reset Mode),
- Response Time: <200ms
- Accuracy Current: ±1% of Setting ± 2 digits,
- Time Setting Accuracy: ±5% of Setting ±200ms
- Output Contact: 1 C / O (SPDT)
- Output Rating NO: 5A@250V AC, NC: 3A@230V AC
- Supply Voltage: 230V AC (±15%)
- Size: 35 mm
- Mounting Type: DIN Rail Mount
- Certification: CE
