- Brand: Multispan
- Model: VPR-17U
- Function: Under Voltage, Over Voltage, Phase Sequence, Phase Loss, and Phase Asymmetry Protection
- Input Voltage: 170 to 528V AC (L-L), 3Ø-3W
- Supply Voltage: Self-powered (from input lines)
- Output: 1 Relay (C/NO/NC), Rating 5A, 230V AC (Resistive)
- Under Voltage Range: 176V to 470V AC (L-L)
- Over Voltage Range: 225V to 528V AC (L-L)
- Tripping Parameters: Hysteresis 6V (Fixed), Phase Asymmetry > 40V (Fixed)
- Time Delays: Power ON Delay (5 sec), Trip Delay (0.2 to 10 sec selectable), Auto Reset (5 sec)
- LED Indications: Separate status LEDs for UV, OV, and PL/PA (Phase Loss/Asymmetry)
- Size / Mounting: 90 x 17.5 x 61 mm (HxWxD), DIN Rail Mounting
- Certification: CE and RoHS compliant

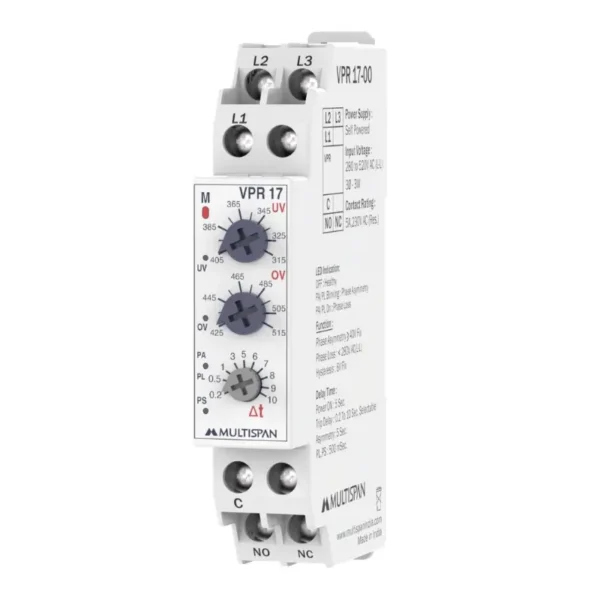

Multispan VPR-17U Voltage Protection Relay 90X17.5
₹1,650.00
