- Brand: Multispan
- Model: PQM-14
- Product Type: Power Quality Meter (3-Phase 4-Wire / 1-Phase 2-Wire)
- Input Signals: Programmable CT Primary (up to 9999A) and CT Secondary (1A or 5A)
- Voltage Range: PT Primary (100V to 520kV) and PT Secondary (100V to 520V L-L)
- Measured Parameters: VAF (Voltage, Ampere, Frequency), Power (kW, kVA, kVAr), Energy (kWh, kVAh, kVArh), PF, RPM, and Load/No Load Hours
- Frequency Range: 45.00 to 60.00 Hz
- Accuracy: Class 0.5 (Standard)
- Display: 4 Digit, 3 Line, 0.57″ Red LED Display
- Auxiliary Supply: 100 to 300V AC/DC, 50/60Hz
- Power Consumption: Approximately 3 VA @ 230V AC Max
- Operating Temperature: 0°C to 55°C
- Relative Humidity: Up to 95% RH (non-condensing)
- Protection Level: IP-65 (Front side)
- Physical Dimensions: 98(H) x 98(W) x 46(D) mm
- Panel Cutout Size: 92(H) x 92(W) mm

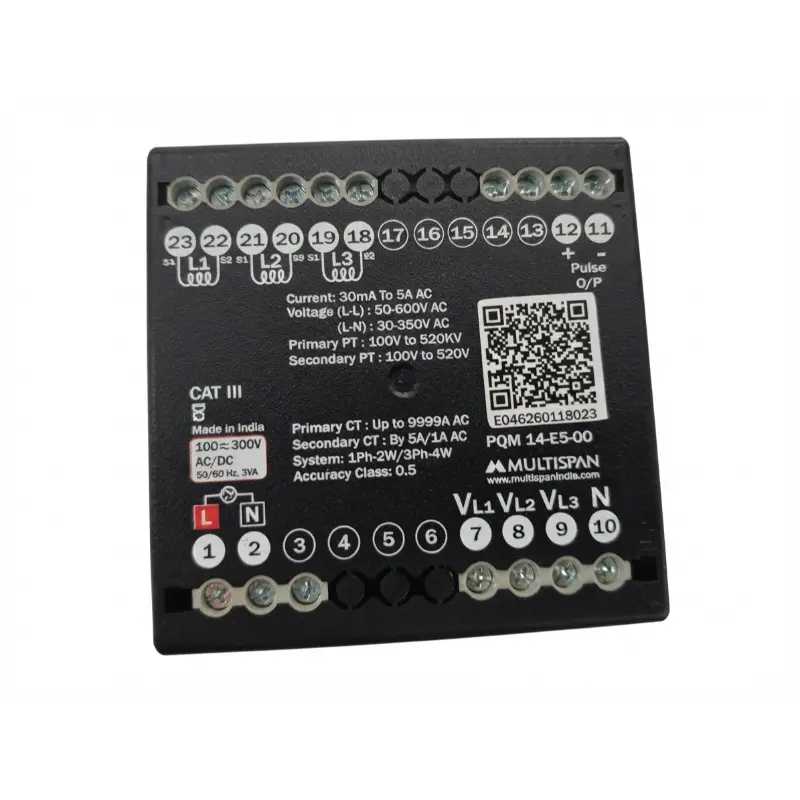

- Terminal Connection: M3.5 screw terminals (tightening torque 1.2 N.m)
Multispan PQM-14 Multifunction Meter 100-300V AC/DC Supply 96X96
₹5,500.00
