- Brand: Multispan
- Model: PM-133
- Type: 3 Phase 4 Wire VAF Panel Meter
- Input Voltage Range: 50 to 300V AC (L-N) / 87 to 519V AC (L-L)
- Input Current Range: 0.5A to 5A AC
- CT Ratio: Programmable from 5/5 to 3000/5
- Power Supply: 100 to 270V AC/DC, 50/60 Hz (Approx 4VA consumption)
- Display: 3-Digit, 6-Line, 0.36″ Red LED Display
- Accuracy: Class 0.5
- Measured Parameters: Voltage (L-L, L-N), Current, Frequency, Power Factor, Active Power (KW), Load Hour, and RPM
- Frequency Range: 45.0 to 65.0 Hz
- Mechanical Dimensions: $101times101times54$ mm
- Panel Cutout Size: $92times92$ mm
- Terminal Screw Size: M3.5 (Wire Gauge 26-14 AWG)
- Enclosure Material: Polycarbonate (Front) / ABS (Body)
- Environmental Conditions: 0 to 55°C operating temperature; up to 95% RH non-condensing
- Certification: CE and RoHS compliant

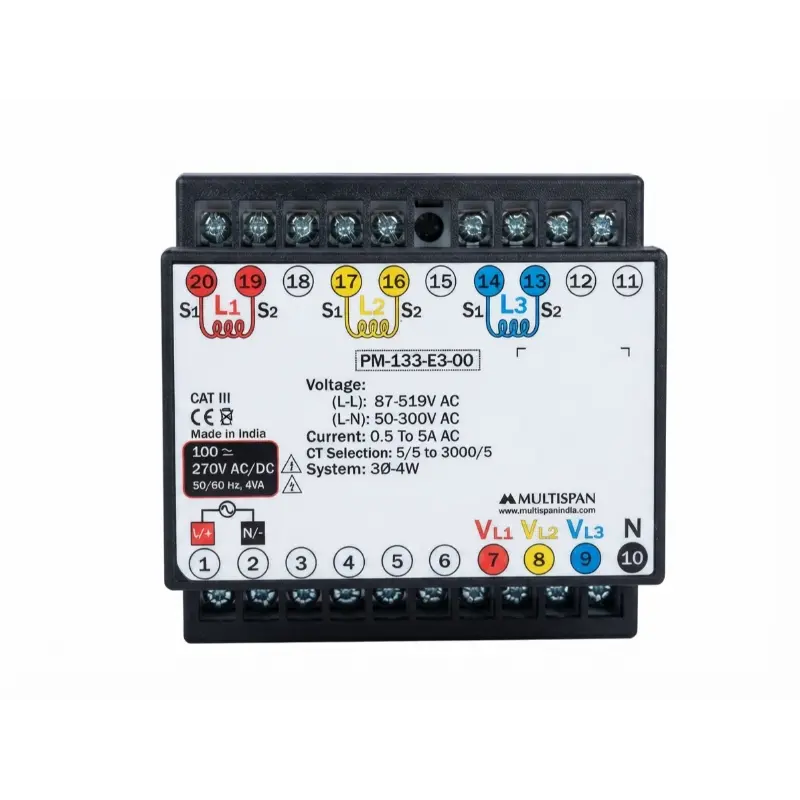

Multispan PM-133 3 Phase Power Meter 100 -270V AC/DC Supply 96X96
₹2,651.00
