- Brand : Multispan

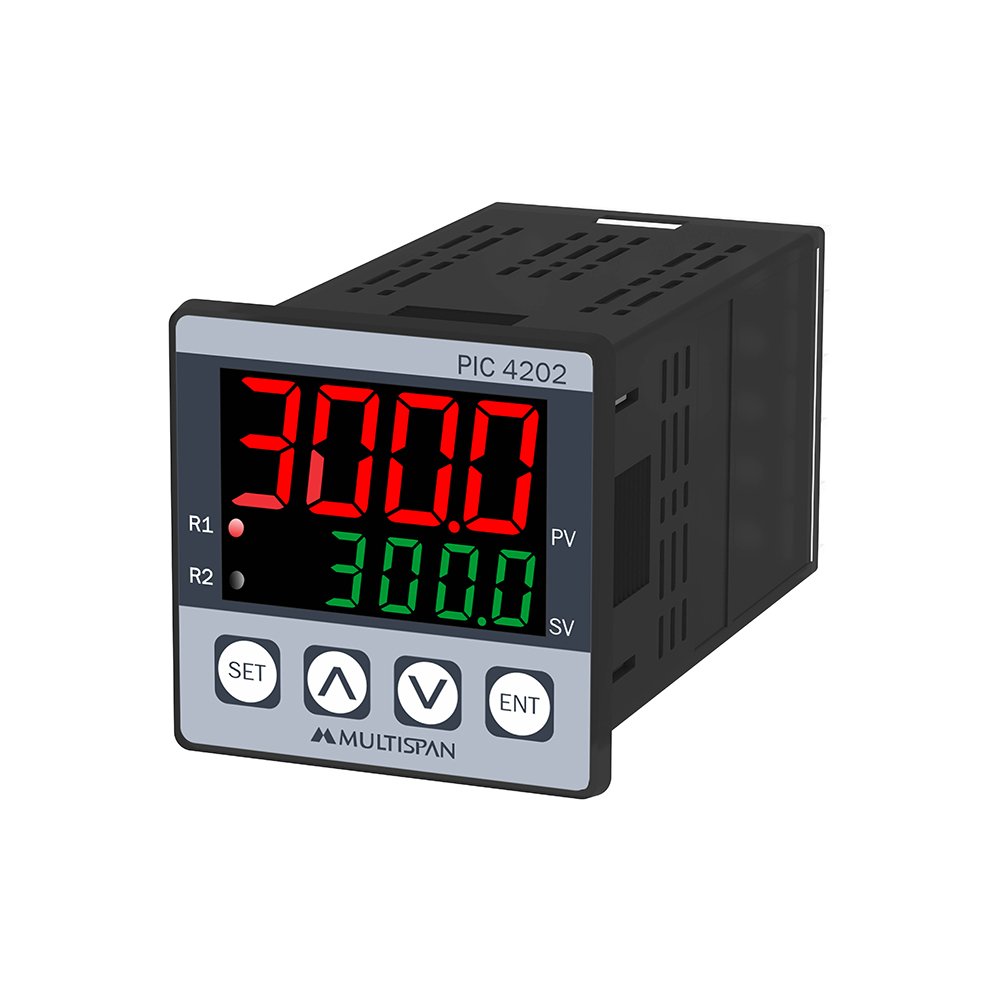

- Model : PIC-4202
- Display : Upper:7 segment ,4 digit,0.39″”,RED LED display-Process value,
- LOWER:7 segment ,4 digit,0.28″”,RED LED display-set value
- Input : 0-20mA DC, 4-20mA DC, 0-10V DC (Configurable)
- Range : -999 to 9999 User Selectable, 2Relay for alarm
- Dimension : 48 x 48 x 70 mm
- Panel Cutout : 44 x 44
- Relay Output : 2 Relay
- Relay Rating : 1c/o,5A,230V
- AC Excitation : 24V DC(optional)
- Set Point : 2 Set point
- Control Action : ON-OFF Action
- Operating mode : SET-1:High alarm, Low alarm, In band, Out band, Absolute Low, Absolute out band,
- SET-2:High alarm, Low alarm, In band, Out band, Absolute Low, Absolute out band
- Power supply : 100-250V AC/DC SMPS,50/60Hz
- Enclosure Material : ABS& Polycarbide
- Operating Ambient Temperature : 0?C to 55?C
- Relative Humidity Up to 95%RH Non Condensing
Multispan PIC-38 Process Controller
Original price was: ₹2,640.00.₹2,025.00Current price is: ₹2,025.00.PCS
Multispan SPI-421 4-Mode Selectable Multi-Range Process Indicator
Original price was: ₹5,335.00.₹3,983.00Current price is: ₹3,983.00.PCS
-11%
Multispan PIC-4202 Process Controller
Original price was: ₹3,315.00.₹2,953.00Current price is: ₹2,953.00.PCS
100 in stock
100 in stock
