- Brand: Multispan
- Model: OLR-1060
- Primary Function: Over Current Relay with Single Phase Prevention (SPP)
- Input Current Range: 10 to 60A AC
- Power Supply: 230V AC, 50Hz
- Output: 1 Relay (NO/C/NC), 5A 230V AC / 30V DC Resistive load
- Tripping Parameters: Over Current and Single Phase Prevention (SPP)
- Power ON Delay: 0 to 9 Seconds (Settable)
- Initial Time Delay: 5 Seconds
- Trip Time Delay: 0 to 9 Seconds (Settable)
- Reset Mode: Manual
- LED Indications: Main Supply (M) and Relay Status (R)
- Enclosure Dimensions: 70.50mm x 69.60mm x 90.83mm
- Phase Monitoring: L1, L2, and L3 via 16mm through-holes
- Control Keys: Test (TST) and Reset (RST) buttons
- Original Multispan Product at Electrixzone.

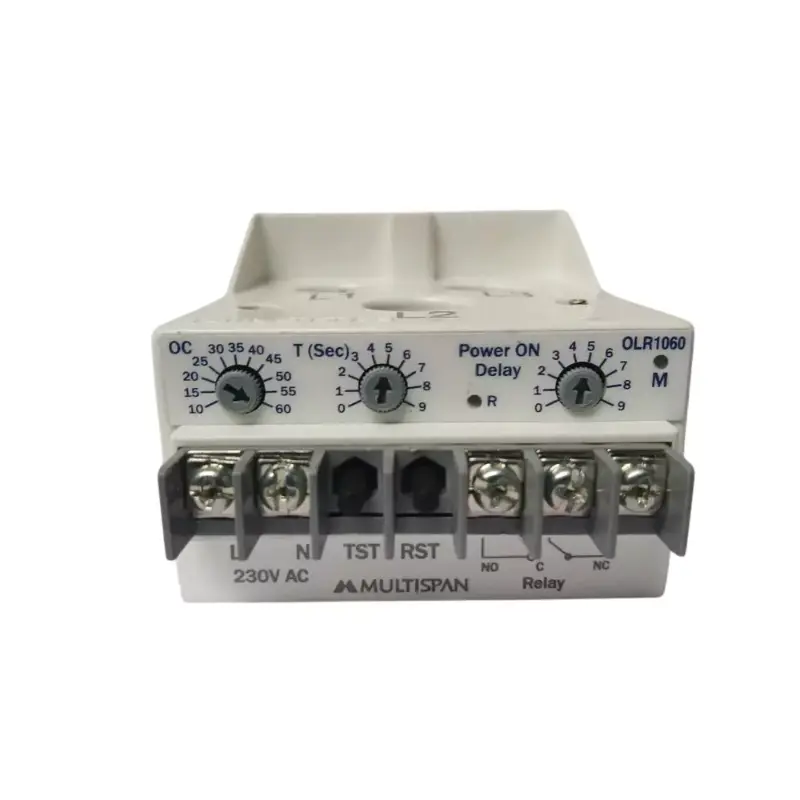

Multispan OLR-1060 Voltage And Current Protection Relay 230V AC Supply 70X55
₹1,851.00
