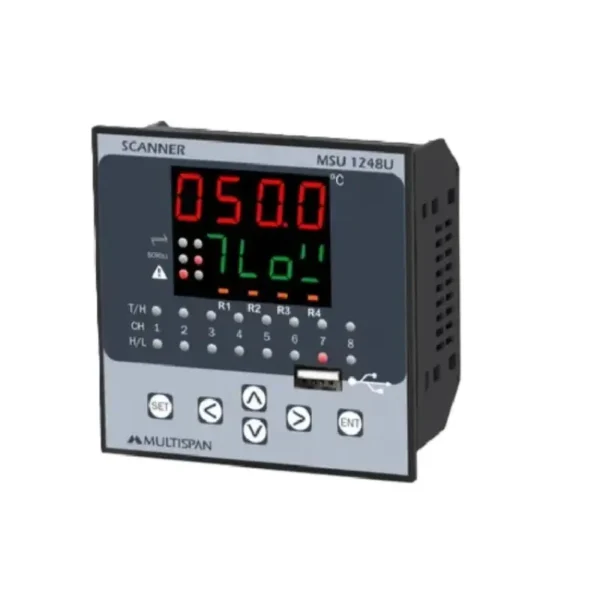

Multispan MSU-1248U-M1 Process Scanner And Data Logger 8 channel 96X96

Name: Multispan MSU-1248U-M1 Process Scanner And Data Logger 8 channel 96X96
Brand: Multispan
SKU: Multispan MSU-1248U-M1
Availability: InStock

SKU: Multispan MSU-1248U-M1

₹26,595.00

Are You an International Customer?

Click here to reach out to us directly via WhatsApp.

Add to compare

Add to wishlist

Payment Methods:

Description

Brand: Multispan
Model: MSU-1248U-M1
Product Category: 8 Channel Scanner with Data Logger and MODBUS Facility
Inputs: J/K Thermocouple, PT100 (2-wire/3-wire), and Analog (0-10V DC, 0-20mA DC, 4-20mA DC) – all configurable
Input Ranges: J (0 to 600°C), K (0 to 1200°C), PT-100 (-99 to 400°C), Analog (-999 to 9999)
Control Outputs: 4 Relays with grouping facility
Relay Rating: 5A @ 230V AC / 30V DC
Communication: RS-485 MODBUS RTU protocol with configurable baud rates (4800, 9600, 19200)
Data Logging: Internal 2MB non-volatile memory, periodic logging (up to 8000 samples), and USB 2.0 port for data retrieval in .csv format
Display: Dual 4-digit LED display (Upper: 0.70″ Red for Process Value; Lower: 0.50″ Green for Channel and Relay status)
Accuracy: ± 1% Full Scale Deflection (FSD)
Power Supply: 100 to 270V AC, 50/60Hz
Dimensions: Front Face 100 x 100 mm; Depth 70 mm
Panel Cutout: 92 x 92 mm
Protection: IP 65 Ingress Protection for the front side
Applications: Ideal for Pharma & Chemical industries, Generator/Compressor monitoring, and SCADA interface
