- Brand: Multispan
- Model: DSM-11
- Primary Function: Dual Source Energy Meter for monitoring Electricity Board (EB) and Generator (DG) supplies.
- Display: 8-digit, 7-segment 0.5″ RED LED display.
- Input Signal: 3-Phase 4-Wire system.
- Voltage Input: 50V to 520V AC (L-L) or 30V to 300V AC (L-N).
- Current Input: 30mA to 5A AC.
- CT Primary: Programmable up to 9999A.
- Auxiliary Supply: 100V to 270V AC/DC, 50/60Hz.
- DG Supply Sensing: 230V AC.
- Measurement Parameters: Total and per-phase kW, kVA, kVAr, kWh, kVAh, and kVArh.
- Time Tracking: Load hours and No-load hours (up to 9999.59 Hrs/Min).
- Accuracy: Class 0.5.
- Output: Pulse Output for energy monitoring.
- Size: 96(H) x 96(W) x 54(D) mm.
- Panel Cutout: 92(H) x 92(W) mm.
- Operating Temperature: 0°C to 55°C.
- Protection Level: IP-65 Front Side (as per request).

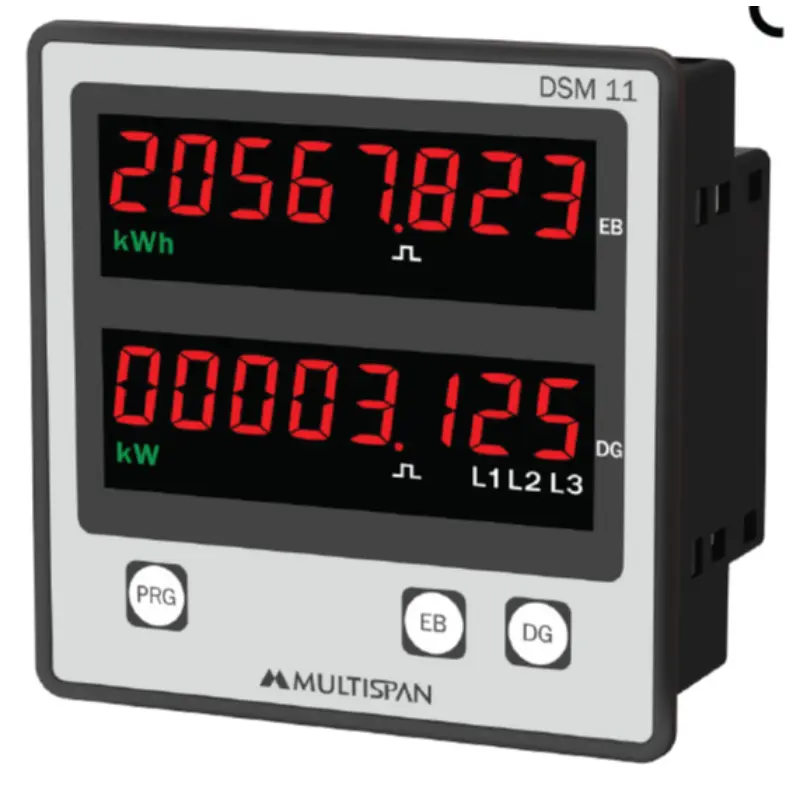

Multispan DSM-11 Dual Source Multifunction Meter 100-270V AC /DC Supply 96X96
₹3,900.00
