- Brand: Multispan
- Model: DGMR-132
- Network Connection: 3 Phase 4 Wire (3Ø-4W)
- Protection Functions: Over/Under Voltage, Phase Asymmetry, Phase Loss, Phase Sequence, and Single Phase Preventer (SPP)
- Input Voltage Range: 300 to 500V AC (L-L)
- Accuracy: Class 1.0
- Display: 4-digit, 1-line, 0.8″ Red LED
- Output: 3 Relay Outputs, 2 C/O (NO-C), (NO-C-NC)
- Relay Rating: 5A, 230V AC Resistive Load
- Trip Settings: Under Voltage (300-380V AC), Over Voltage (430-500V AC), Phase Asymmetry (1-100V)
- Time Parameters: R1D, R2D, R3D, I+D, and Trip delay (1 to 999 Sec)
- Supply Voltage: Main Supply 415V AC; DG Supply 1P-2W 230V AC
- Dimensions: 96mm (H) x 96mm (W) x 45mm (D)
- Panel Cutout: 92mm (H) x 92mm (W)
- Environmental: Operating temperature $0^{circ}C$ to $55^{circ}C$, up to 95% RH
- Protection Level: IP-65 (Front side)

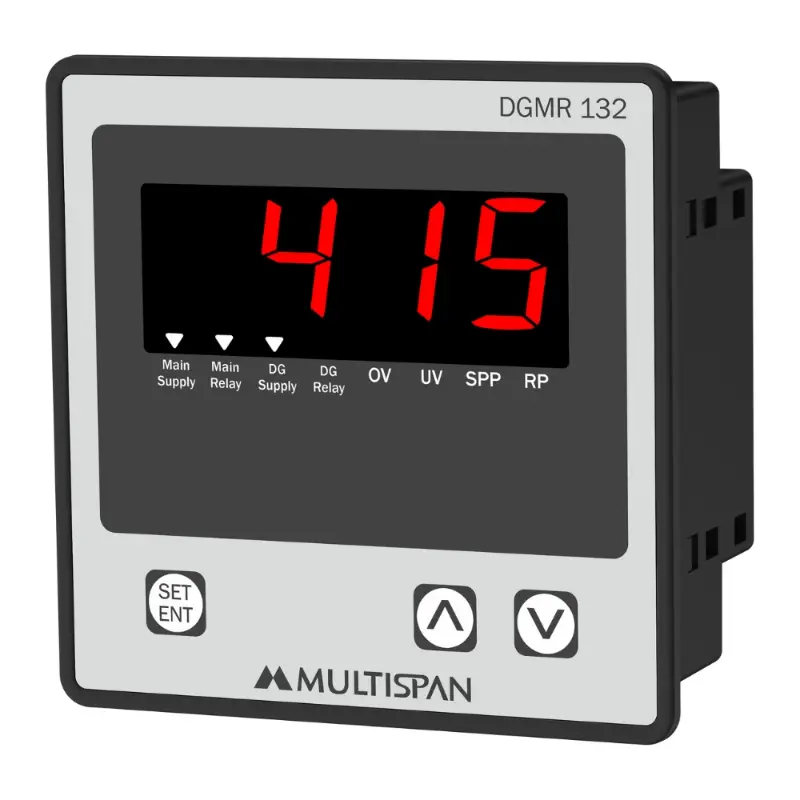

Multispan DGMR-132 DG Monitoring Relay 96X96
₹3,650.00
