- Brand: Multispan
- Model: CPR-35-1C
- Primary Protection: Over Current, Under Current, and Phase Loss
- Measurement Type: True RMS Measurement
- Input Current (Secondary): 0.1 to 5 Amp AC
- Primary C.T. Ratio: Selectable from 5 to 999 Amps
- Trip Settings: Under current (0 to 100%) and Over current (0 to 120%) of primary C.T. value
- Time Parameters: Adjustable Power-on delay, Initial time delay, Trip delay, and Recovery time
- Output: 1 Changeover (C/O) Relay (NO-C-NC)
- Relay Rating: 5A, 250V AC / 30V DC
- Supply Voltage: 100 to 270V AC/DC, 50-60Hz
- Display: Dual Display (Upper: 3 Digit 0.4″, Lower: 3 Digit 0.28″)
- Reset Options: Auto, Manual, or ZVR (Zero Value Reset)
- Dimensions: 90(H) x 35(W) x 61.5(D) mm (DIN Rail Mount)
- Operating Temperature: 0°C to 55°C

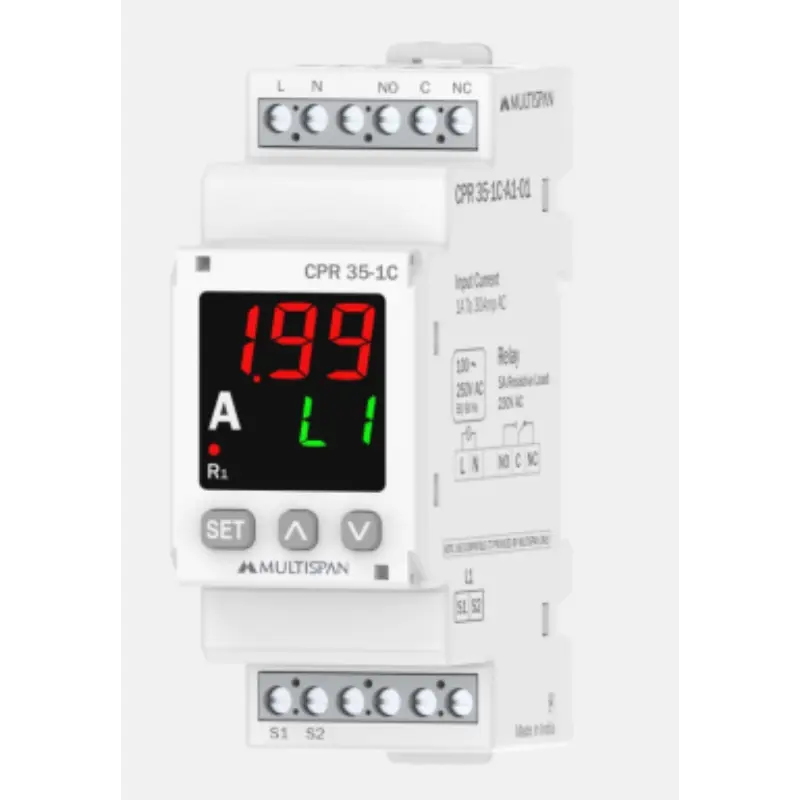

Multispan CPR-35-1C Voltage And Current Protection Relay 100 -270V AC Supply 90X35
₹1,811.00
