- Brand: Multispan
- Model: CPR-19
- Function: Current Protection Relay
- Protection Features: Over/Under Current, Single Phase Prevention, Lock Rotor Point, Short Circuit, and Asymmetry
- Inputs: 3 Phase Current AC, Primary CT Ratio (5 to 9999 Amp selectable), Secondary Current AC (0.1 to 5 Amp)
- Outputs: 2 Relays; Relay 1 (NO-C-NC, 10A @ 250V AC), Relay 2 (NO-C, 5A @ 250V AC)
- Size: 96 (H) x 96 (W) x 54 (D) mm
- Panel Cutout: 92 (H) x 92 (W) mm
- Range: Under/Over Current (0.00 to CTR), Short Circuit (1-9 Scale), Lock Rotor (0.5 to 9.0 Scale), Asymmetry (5-60%)
- Supply Voltage: 100 to 270V AC/DC, 50/60Hz
- Display: 3 Digit, 3 Line 7 Segment 0.56″ Red LED

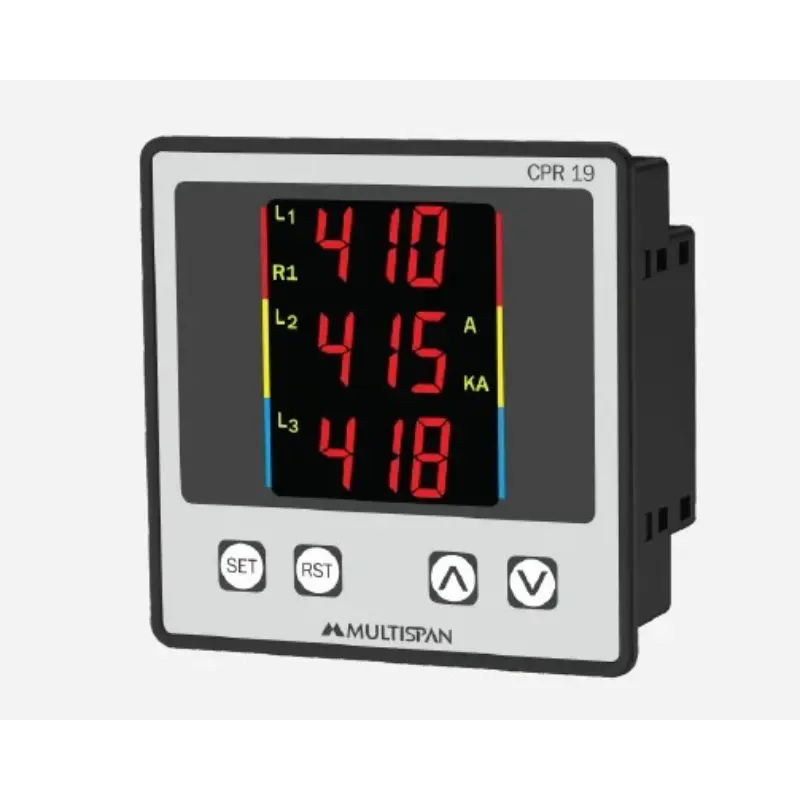

Multispan CPR-19 Voltage and Current Protection Relay 100 -270V AC/DC Supply 96X96
₹2,971.00
