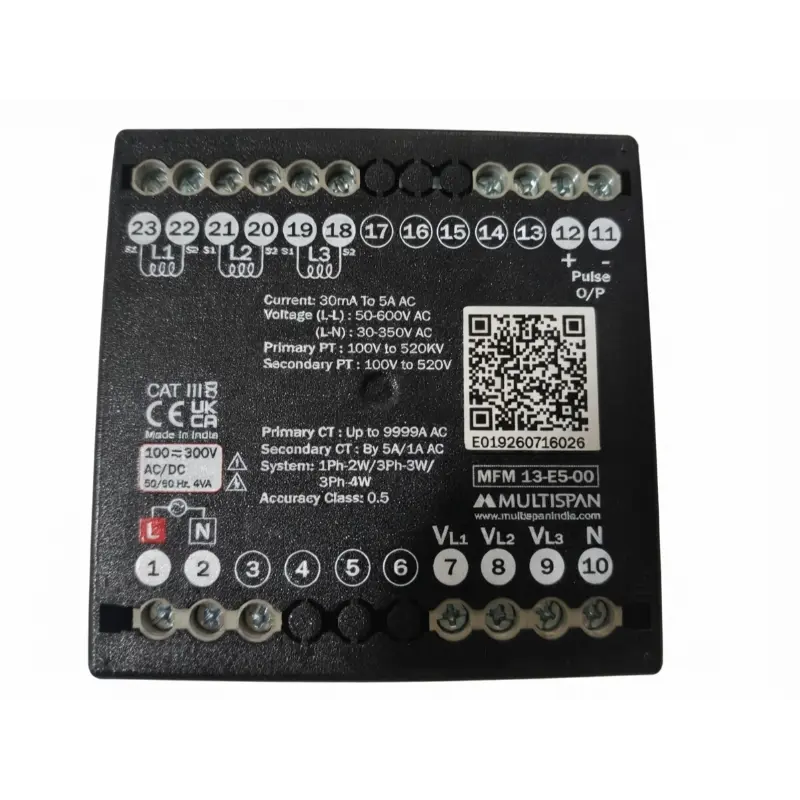

Multispan MFM-13 Three Phase Multifunction Meter

• Brand : Multispan
• Model : MFM-13
• Dimension : 96 x 96 x 50 mm
• Panel Cutout : 92 x 92 mm
• Display : 4-Digit, 3-Line 0.57″ RED

PARAMETER SPECIFICATION

• Input Signal : 3Ø-3Wire / 3Ø-4Wire / 1Ø-2Wire
• CT Primary : Upto 6000A (Programmable)
• CT Secondary : 5 Amp/1 Amp selectable
• PT Primary : 100V to 520kV (Programmable)
• PT Secondary : 100V to 520V (L-L) (Programmable)
• PF Avg. & Per Phase : 0.100 – 1.000
• Frequency (Hz) : 45.00 – 60.00 Hz
• Load hours : 9999.59 Hrs/Min.
• No load hours 9999.59 Hrs/Min.
• RPM 3600 RPM @ 60 Hz & 2-Pole

POWER

• KW Total : 0.000 – 9999 MW
• kW Per Phase : 0.000 – 9999 MW
• kVA Total : 0.000 – 9999 MVA
• kVA Per Phase : 0.000 – 9999 MVA
• kVAr Total : 0.000 – 9999 MVAr
• kVAr Per Phase : 0.000 – 9999 MVAr

ENERGY

• kWH Total : 000.000 – 999999999.999 kWh
• kVAh Total : 000.000 – 999999999.999 kVAh
• kVArh Total : 000.000 – 999999999.999 kVArh

AUXILIARY SUPPLY

• Supply voltage : 100 to 270V AC, 50/60Hz
• Power consumption (VA RATING) : Approx 4 VA @ 230V AC MAX
• ACCURACY : Class 0.5 (Standard)

ENVIRONMENT CONDITION

• Operating Temp. : 0°C to 55°C
• Relative Humidity : Upto 95% RH(non-condensing)
• Protection Level (AS Per Request) : IP-65 (Front side) As per IS/IEC 60529: 2001
