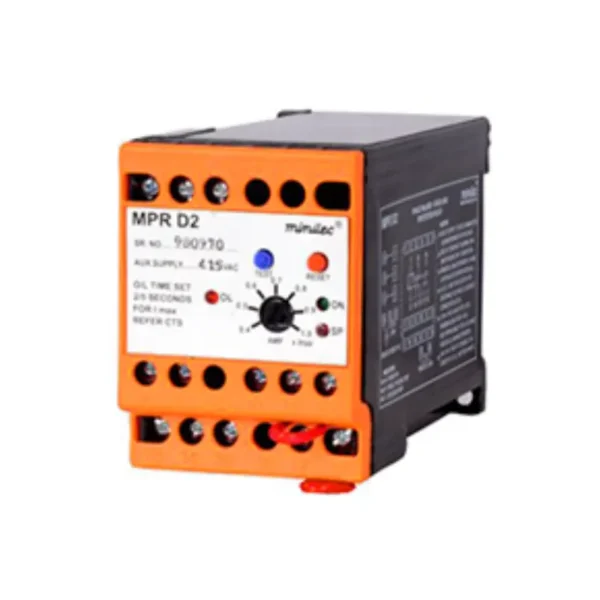

Minilec MPR D2 Motor Protection Relay 76X56.5
Minilec MPR D2 Motor Protection Relay 76X56.5 ₹2,401.00
Back to products
Minilec D2 MPR3 Current Sensing Phase Failure Relay 76X56.5
Minilec D2 MPR3 Current Sensing Phase Failure Relay 76X56.5 ₹2,255.00
Minilec SPG D2 Motor Protection Relay 76X56.5 - Image 1
Click to enlarge

Minilec SPG D2 Motor Protection Relay 76X56.5

SKU: Minilec SPG D2

₹2,566.00

Are You an International Customer?

Click here to reach out to us directly via WhatsApp.

Add to compare
Add to wishlist

Payment Methods:

Description

  • Brand: Minilec
  • Model: SPG D2
  • Primary Function: Comprehensive Motor Protection (Overload, Dry Run/Under Current, Phase Failure, Phase Unbalance, and Phase Sequence)
  • Supply Voltage: 110/240/380/415/440 V AC or 24 V AC/DC ±20%, 50/60Hz
  • Output Relay Contact: 1 CO (Optional 2 CO)
  • Contact Rating: 5A @ 230 V AC (Resistive)
  • External Input: Compatible with S2 CTS 1 Sensor
  • Overload Trip Setting: Above 120% of set current (IDMTL Characteristics)
  • Under Current (Dry Run) Trip: 50% or 75% of set current
  • Phase to Phase Unbalance Trip: 50% of Motor Current
  • Trip Time Delay (Overload): Selectable 2 / 5 seconds (Optional 10/15/20 seconds)
  • Trip Time Delay (Phase/Unbalance): 5.5 secs. ± 1.5 secs.
  • Trip Time Delay (Dry Run): 3.5 secs. ± 1.5 secs.
  • Resetting Mode: Auto / Manual / Remote
  • Dimensions: 76 x 56.5 x 117.5 mm (Overall)
  • Mounting: 35 mm Rail Mounting (67 x 46 mm)
  • Approximate Weight: 425 gms
  • Applications: Submersible Pump Control Panels, Belt Conveyor Motor Panels (Zero Speed Sensing), Air Handling Unit Fans
