- Brand: Minilec
- Model: S2 VMR4
- Product Category: Voltage Monitoring Relay (VMR) / Phase Failure Relay
- System Supply Voltage: 100-120 / 220-240 / 380-440V AC (-25% to +20%)
- Supply Frequency: 48-63 Hz
- Output Relay Contact: 1 CO + 1 CO / 2 CO
- Contact Rating: 5A @ 230 V AC (Resistive)
- Under Voltage Trip Setting: 285-425V AC (for 380-440V range), 165-225V AC (for 220-240V range), 75-115V AC (for 100-120V range)
- Over Voltage Trip Setting: 400-520V AC (for 380-440V range), 230-290V AC (for 220-240V range), 105-145V AC (for 100-120V range)
- Trip Time Delay: 1-10 Seconds (Variable)
- Power On Delay: 1-10 Seconds (Variable)
- Reset Mode: Auto / Manual Reset
- Enclosure Dimensions: 90 x 35 x 60 mm (L x W x D)
- Mounting: 35 mm DIN Rail Mounting
- Weight: Approx. 110 gms
- Common Applications: Battery Charger Panels, Generator Set Panels, AMF Panels, Inverter Panels, DC Drive Control, and UPS Systems

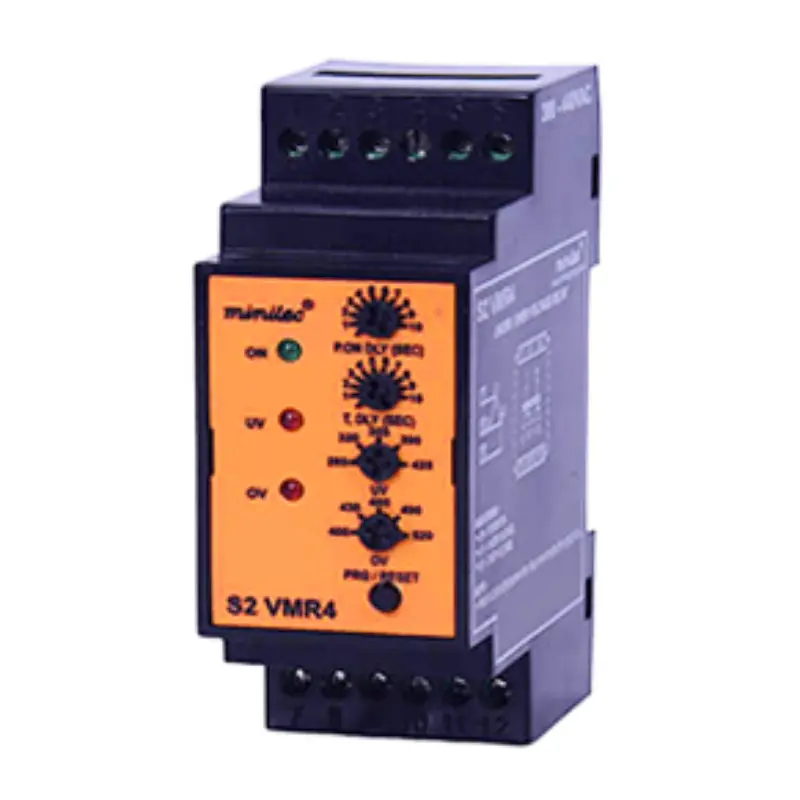

Minilec S2 VMR4 3 Phase Voltage Monitoring Relay 2CO 90X35
₹2,950.00
