- Brand: Minilec
- Model: S2 CMR5
- Function: Single Phase Under Current and Over Current Monitoring Relay
- Auxiliary Supply: 110-120 / 220-240 / 415 VAC ± 20%, 24VDC ± 20%
- External Input: 1 Amp or 5 Amp (CT Secondary) or 250 mA / 500 mA
- Output Relay Contact: 2 CO (1 CO for Under Current, 1 CO for Over Current)
- Contact Rating: 5A @ 230V AC (Resistive)
- Under Current Trip Setting: 10% – 100% (Variable) of Input
- Over Current Trip Setting: 50% – 140% (Variable) of Input
- Trip Time Delay: 1 – 10 seconds (Adjustable)
- Power ON Delay: 1 – 10 seconds (Adjustable)
- Reset Mode: Auto / Manual Reset (Selectable)
- Dimensions: 90 x 35 x 60 mm (L x W x D)
- Mounting: 35 mm Rail Mounting
- Weight: 140 gms
- Applications: Generator/AMF Panels, Fan Belt Failure, Pump Dry Run, Motor No-Load Monitoring, Conveyor Load Monitoring, Capacitor Banks

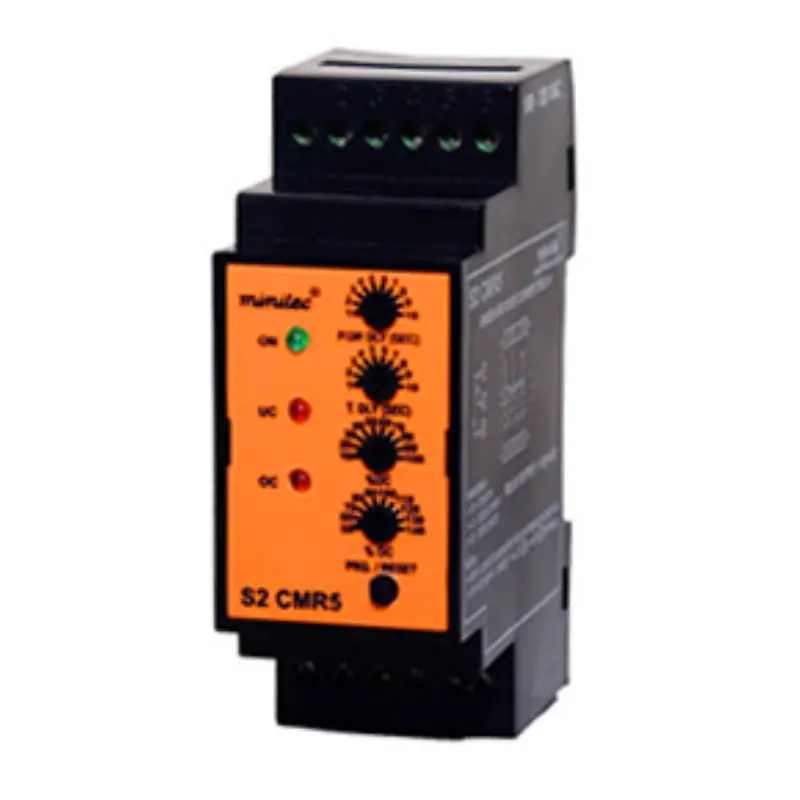

Minilec S2 CMR5 Single Phase Current Monitoring Relay 90X35
₹3,281.00
