- Brand: Minilec
- Model: OCS D1
- Technical Function: Digital Overcurrent Protection Relay (Electronic Current Switch)
- Auxiliary Supply: Wide Range 110/220/230/240/380/415 VAC (+20%) or 12/24 V DC (±10%)
- External Input: 1 Amp or 5 Amp (Secondary) CT, 250/500 mA
- Output Relay Contact: 1 Changeover (1 CO) Rated at 5A @ 230 V AC (Resistive)
- Overcurrent Trip Setting: Adjustable 50% – 140%
- Undercurrent Setting: Not Applicable (N.A.)
- Trip Time Delay: Adjustable 1 – 10 seconds
- Power on Delay: 3.5 seconds ± 1.5 seconds
- Reset Mechanism: Auto Reset
- Dimensions (L x W x D): 76 x 56.5 x 117.5 mm
- Mounting: 35 mm Rail Mounting or 68 mm center-to-center
- Product Weight: 250 gms
- Applications: Generator panels, AMF Panels, Air Purification Plants, Induction Heater Control Panels, Conveyor Load Monitoring, and Power Distribution Panels

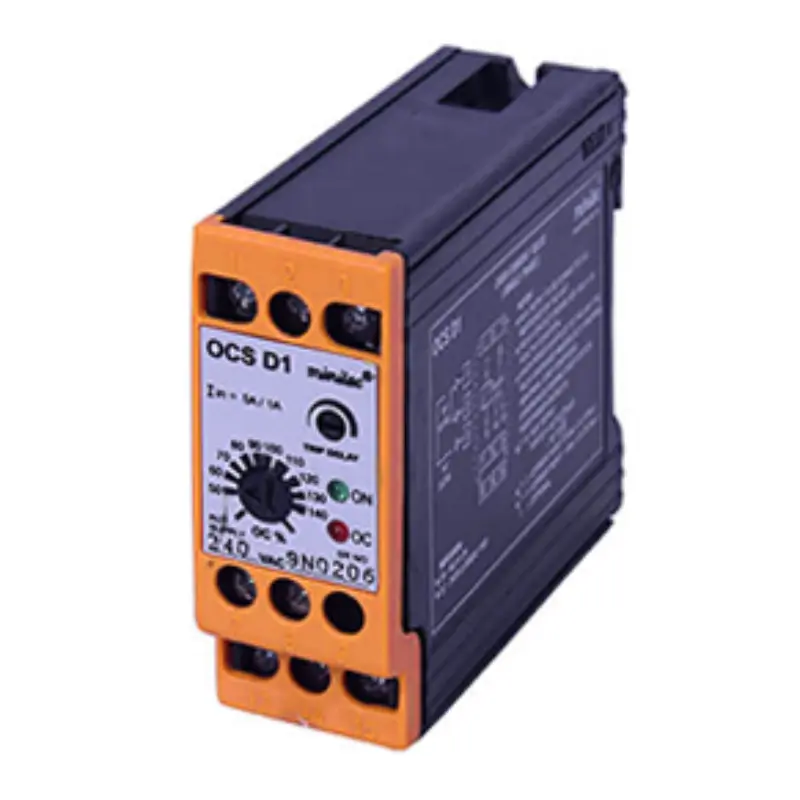

Minilec OCS D1 Single Phase Monitoring Relay 76X56.5
₹1,795.00
