- Brand: GIC
- Model: Z2301N0G1FT00
- Function: Dual application as Hour Meter and Up/Down Counter
- Supply Voltage: 9-30 V DC
- Power Consumption: 2 W maximum
- Hour Meter Range: Wide range from 1 second to 999,9999 hours
- Counter Range: 1 to 999,9999 counts with prescaling facility
- Output Type: Dual MOSFET Output (30 VDC / 60 mA Max)
- Display: 7-Segment LCD with green backlight, 6.5 mm height
- Input Signal: 9-30 VDC with 2kV signal isolation
- Mounting: Panel mount / Flush mounting
- Panel Cut-out: 22mm x 44.8mm
- Features: Retentive and Non-Retentive modes, Password Protection, and Alarm facility
- Environmental Protection: IP40 (Front side), IP20 (Terminals)
- Terminal Capacity: 22-14 AWG (0.3-2.5 mm) wire size

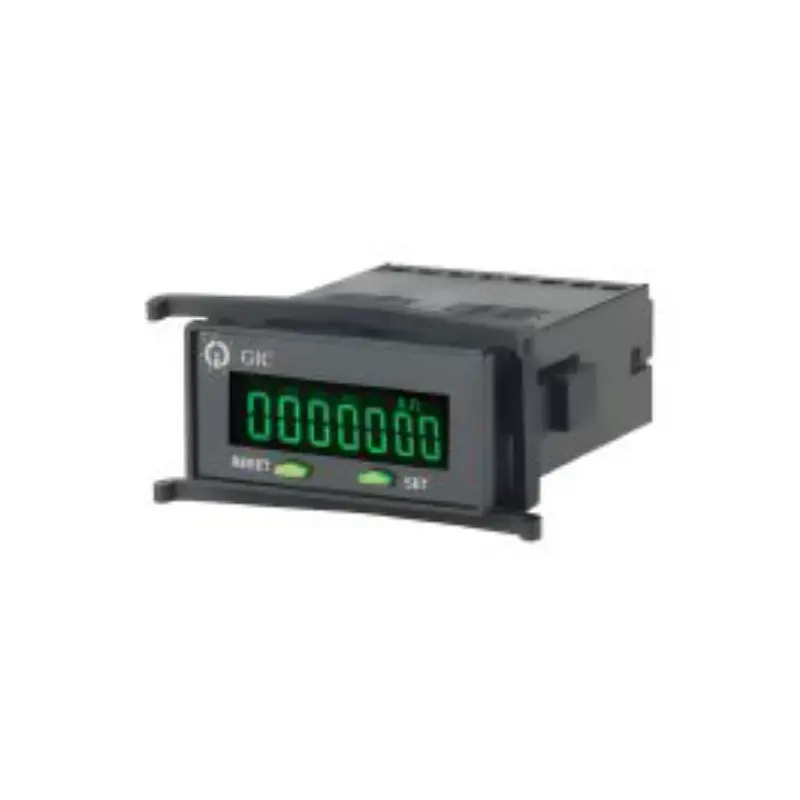

GIC Z2301N0G1FT00 Digital Hour Meter And Counter 9-30 V DC
₹1,756.00
