- Brand: GIC
- Model: MJ93BK
- Primary Function: Protects and controls motors and alternators fitted with PTC thermistor sensors
- Supply Voltage: 220 to 440 VAC
- Supply Frequency: 48 to 62 Hz
- Power Consumption: 8 VA
- Contact Arrangement: 2 C/O (DPDT)
- Contact Rating: 5A @ 250 VAC / 28 VDC
- Reset Modes: AUTO, MANUAL, and REMOTE Reset selection
- Trip Resistance: 1.62 k? to 2.56 k?
- Reset Resistance: Less than 1.79 k?
- Sensor Short Detection: Detected if resistance is lower than 20 ?
- Sensor Open Detection: Detected if resistance is above 20 k?
- LED Indications: Separate indications for Healthy, Unhealthy, and Sensor Open/Short conditions
- Operating Temperature: -15°C to +60°C
- Dimensions (W x H x D): 22.5 x 83 x 100.5 mm
- Mounting: DIN Rail (35mm) and Base Mounting

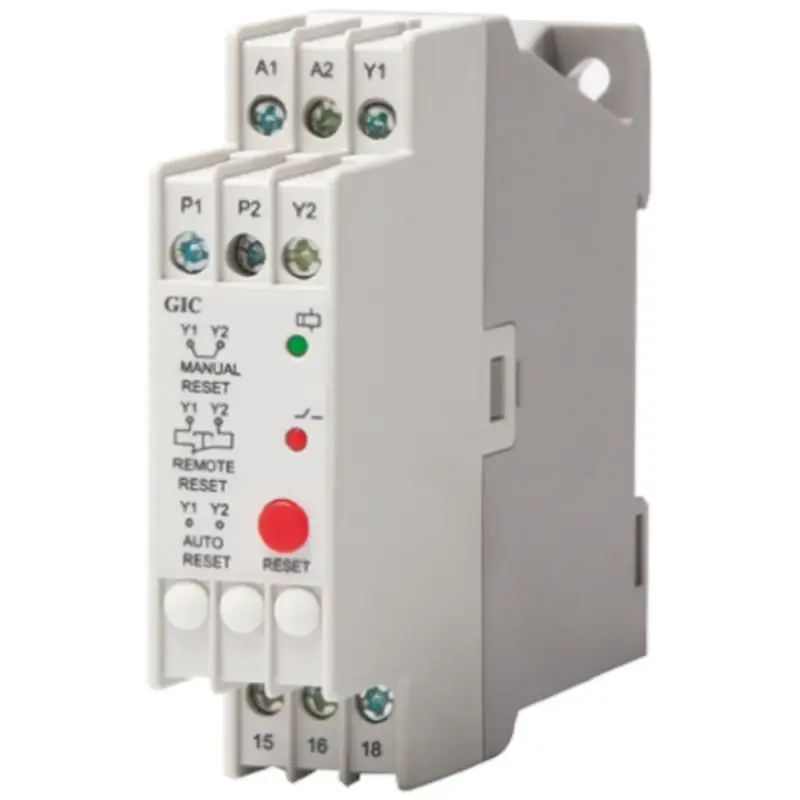

GIC MJ93BK Thermistor Relay Series 220-440 VAC 2 C/O
₹2,671.00
