- Brand: GIC
- Model: DMS120
- Primary Function: Digital Voltage Monitoring (Over/Under Voltage, Over/Under Frequency, Phase Loss, Phase Asymmetry, Phase Sequence, and Neutral Fail)
- System Compatibility: 3-Phase 3-Wire or 3-Phase 4-Wire systems (Configurable)
- Supply Voltage: Self-powered device with a Line Voltage range of 145-500 VAC
- Measuring Voltage Range: Phase voltage (50 to 288 VAC) and Line voltage (85 to 500 VAC)
- Measuring Frequency: 45-65 Hz
- Outputs: 2 C/O relay outputs
- Relay Contact Rating: 5A (Resistive) @ 240 VAC / 30 VDC
- Configurable Timers: Power-on delay (0-999s), On-delay (0.5-999s), and Off-delay (0.1-999s)
- Display: Digital LCD with green LED backlight for real-time monitoring and fault history
- Mounting: Base or DIN rail mounting (35mm)
- Size: 36 x 90 x 66.5 mm
- Environmental Protection: IP-20 for Enclosure & Terminals; IP-40 for Front Facia with dust cover

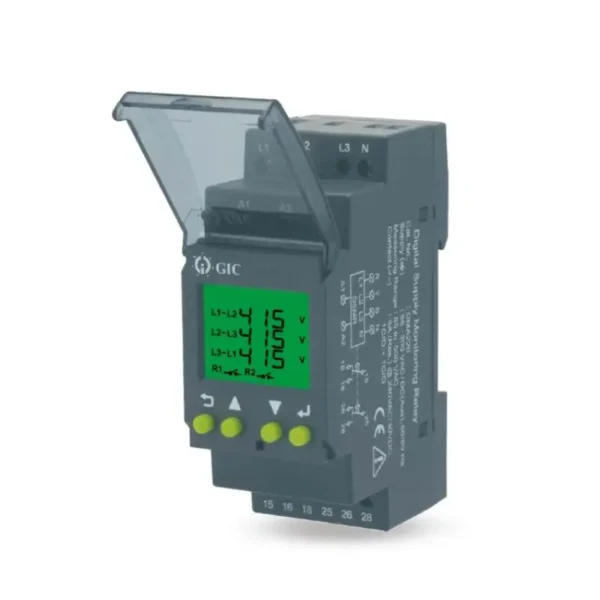

GIC DMS120 Digital Voltage Monitoring Relay SM800 145-500 VAC 1 C/O
₹2,381.00
