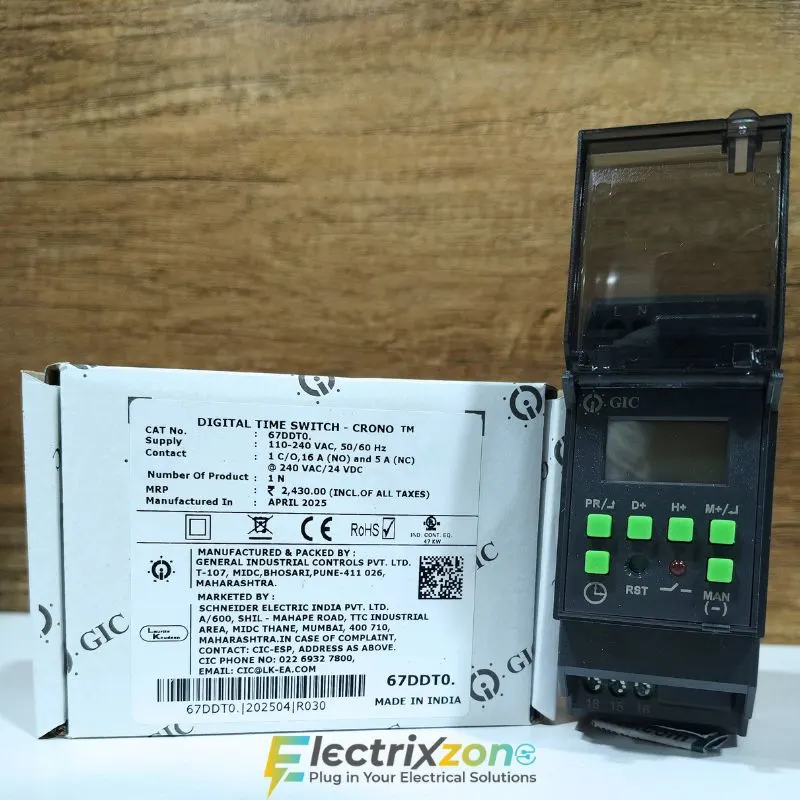

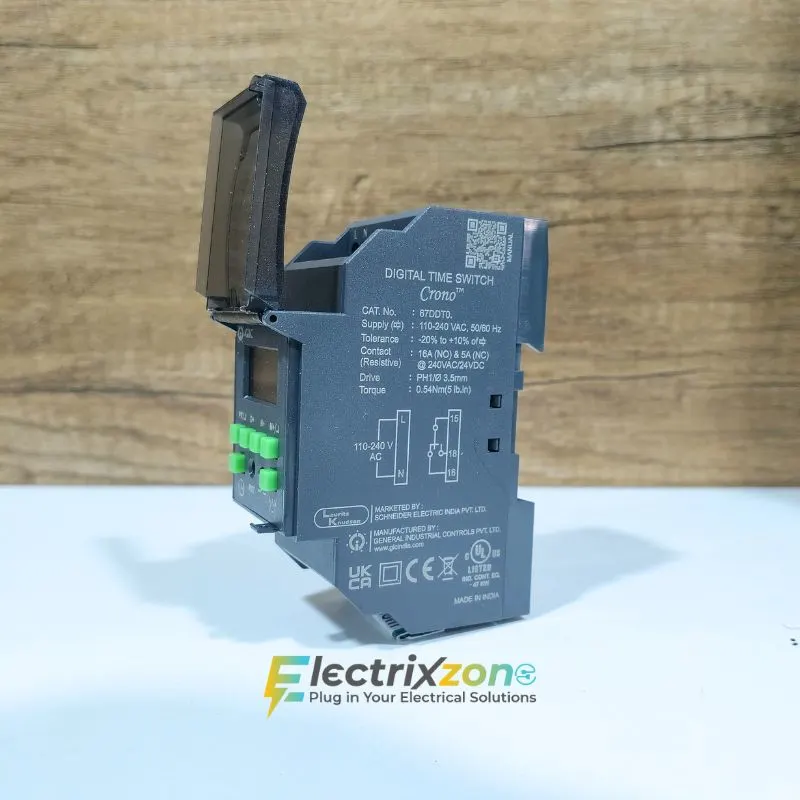

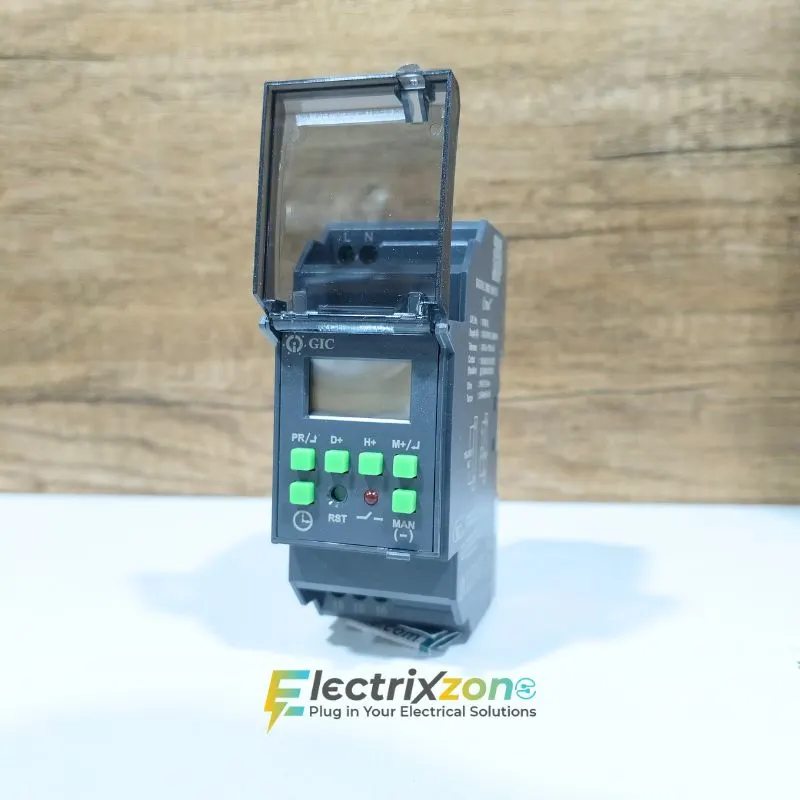

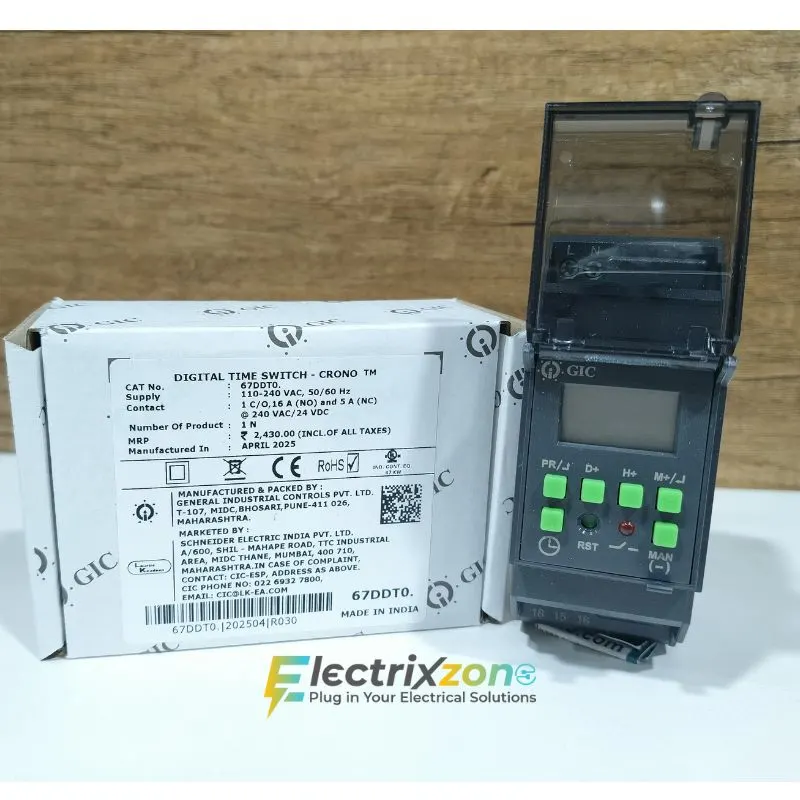

- Brand : GIC
- Model No : 67DDT0
- Type : Time Switches
- Supply Variation : 20% to +10%
- Frequency : 50 / 60 Hz
- Power Consumption : 4 VA
- Contact Rating : 16A (For ‘NO’) & 5A (For ‘NC’) @ 240 VAC / 24 VDC (Resistive)Inductive (cos ø = 0.6)6 A @ 250 VAC
- Electrical Life : 3 x 10⁴
- Storage Temperature : 10°C to + 60°C
- Operating Temperature : 10°C to + 55°C
- Humidity : 95 % (Rh)
- LED Indication Red LED : Relay ON
- Number of Programs : 25 ON / OFF Programs
- Power Reserve : 6 years
- Utilization Category Dc 13 : Rated Voltages (Ue) 24 / 125 / 250 V Rated Current (Ie)2.0 / 0.22 / 0.11 A
- Utilization Category Ac 15 : Rated Voltages (Ue) 120 / 240 VRated Current (Ie)3 / 1.5 A
- Enclosure : Flame Retardant
- Mounting Type : DIN rail
- Mechanical Life : 5 x 10⁴
- No of Operating Modes : 5
- Display : LCD with Backlight
- Min Switching Time : 1 Min
- Pulse Duration : N / A
- Description of Modes : Auto / On Auto / Auto Off / On / Off
- Clock Accuracy : ± 2 s / day max. over the Operating Temperature range
- Warranty : 6 Months Warranty
- Weight : 0.110 Kg
GIC J648B1 Analog Time Switch 240VAC 1 C/O
Original price was: ₹2,552.00.₹2,168.00Current price is: ₹2,168.00.
GIC WT2DCDS Digital Time Switch Weekly 110-240 VAC, Digital Time Switch-Crono Pro, 2 C/O
Original price was: ₹3,185.00.₹2,709.00Current price is: ₹2,709.00.
-24%
GIC 67DDT0 Digital Time Switch 85-265VAC 1 C/O
Original price was: ₹2,430.00.₹1,841.00Current price is: ₹1,841.00.
