- Brand: GIC
- Model: 2SC3D11DC3
- Function: Linear process signal converter with 3-port galvanic isolation
- Input Signals: User selectable (0-5)VDC, (1-5)VDC, (0-20)mA, or (4-20)mA
- Output Signals: User selectable (0-10)VDC, (2-10)VDC (min. 1k? load) or (0-20)mA, (4-20)mA (max. 500? load)
- Supply Voltage: 24VDC ±15%
- Power Consumption: 2 W
- Isolation: 3.75kV AC galvanic isolation between input, supply, and output
- Accuracy: Class 1 (1% of full scale) as per IEC60688
- Response Time: Less than 100ms
- Adjustments: Front-accessible potentiometers for Offset (+/- 5%) and Gain (+/- 10%)
- Configuration: 16 combinations of inputs and outputs selectable via front-facing DIP switches
- Housing Width: 22.5mm standardized industrial housing
- Mounting: 35mm symmetrical DIN-rail mounting
- Operating Temperature: -10°C to +55°C

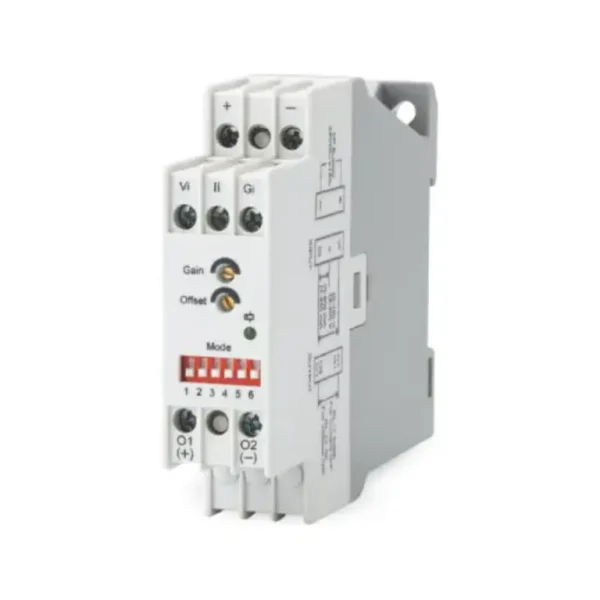

GIC 2SC3D11DC3 Signal Transducer 24 VDC
₹2,186.00
